GPS Receiver - EM-506 (48 Channel)

  • WeightMajor
  • WeightMinor

42.95 42.95 42.95 USD


This combination does not exist.

Add to Cart

SKU : GPS-12751
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

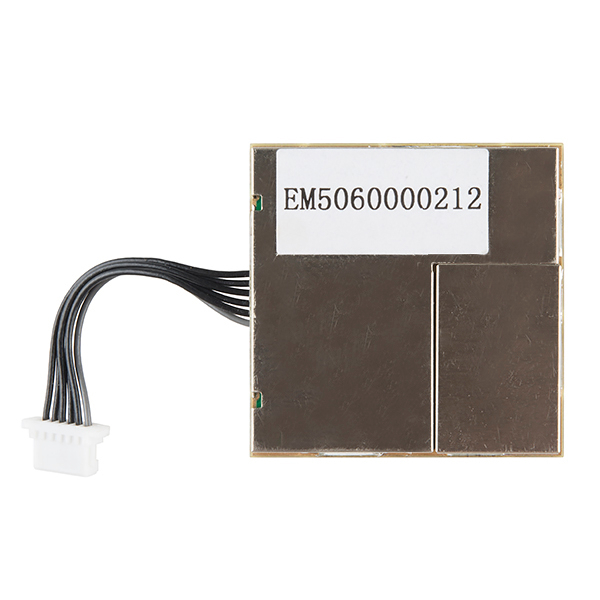

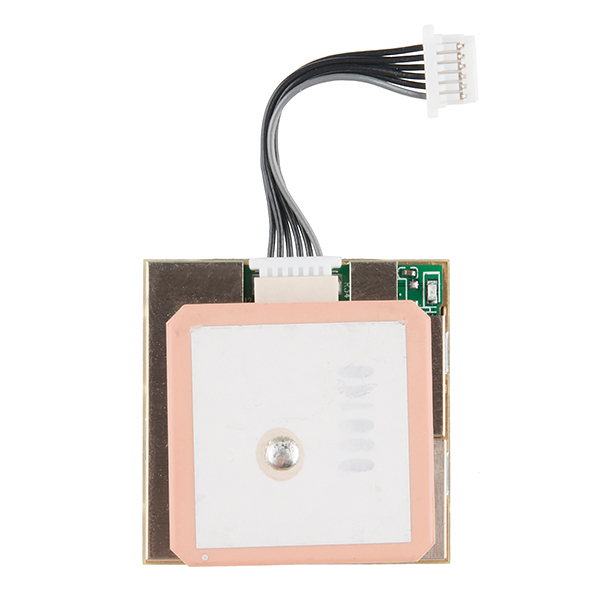

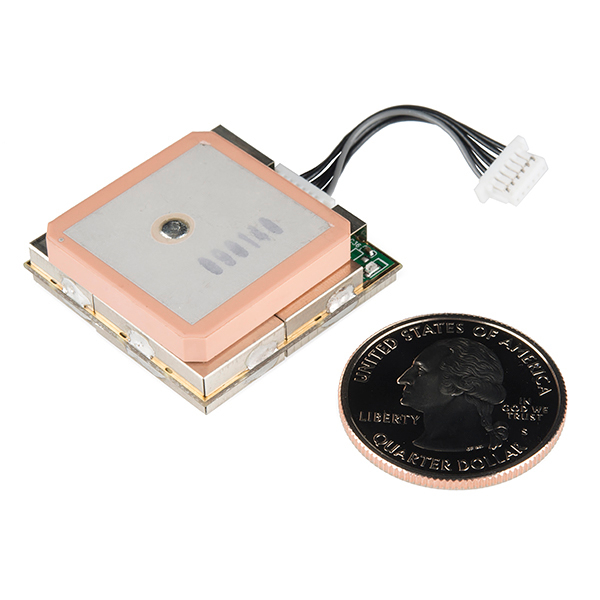

Description: The EM-506 GPS receiver from USGlobalSat based on the spectacular SiRF StarIII chipset. This complete module is built upon the same technology as the ET-301, but includes on-board voltage regulation, LED status indicator, battery backed RAM, and a built-in patch antenna! 6-pin interface cable included.

This EM-506 GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance.


  • 48-Channel Receiver

  • Extremely high sensitivity : -163dBm

  • 2.5m Positional Accuracy

  • Hot Start : 1s

  • Warm Start : 35s / 15s with CGEE

  • Cold Start : 35s / 15s with CGEE

  • 45-55mA at 4.5-6.5V* 30mm x 30mm x 10.7mm

  • 16g including cable

Documentation and Downloads
