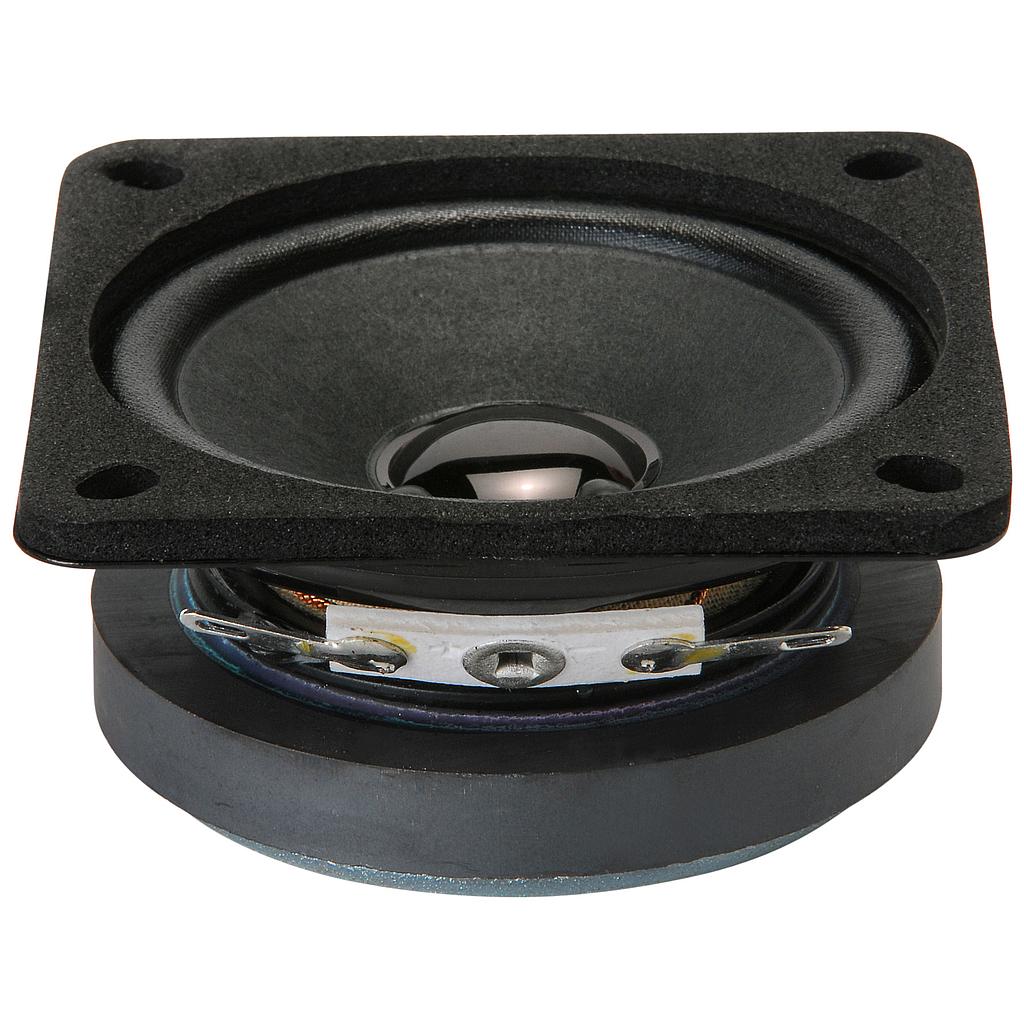

Description: Designed to fit the bill for a wide range of outdoor audio applications, Visaton's 2012 FRS7 2-1/2" full-range driver features a water resistant cone. 8-ohm impedance.
Useful for background music and constant voltage PA systems
2.5", 8-ohm full-range speaker with linear response from 200 Hz to 20 kHz
Paper cone with foam surround
Nominal Diameter: 2-1/2"
Power Handling (RMS): 8 Watts
Power Handling (max): 15 Watts
Impedance: 8 ohms
Frequency Response: 200 to 20,000 Hz
Sensitivity: 88 dB 1W/1m
Voice Coil Diameter: 0.5"
|Resonant Frequency (Fs)||250 Hz|
|DC Resistance (Re)||7.2 ohms|
|Voice Coil Inductance (Le)||0.3 mH|
|Mechanical Q (Qms)||3.32|
|Electromagnetic Q (Qes)||2.08|
|Total Q (Qts||1.28|
|Compliance Equivalent Volume (Vas)||0.01 ft.³|
|Maximum Linear Excursion (Xmax)||0.75 mm|
|Overall Outside Diameter||2.62"|
|Baffle Cutout Diameter||2.4"|
Materials of Construction:
Cone Material: Treated Paper
