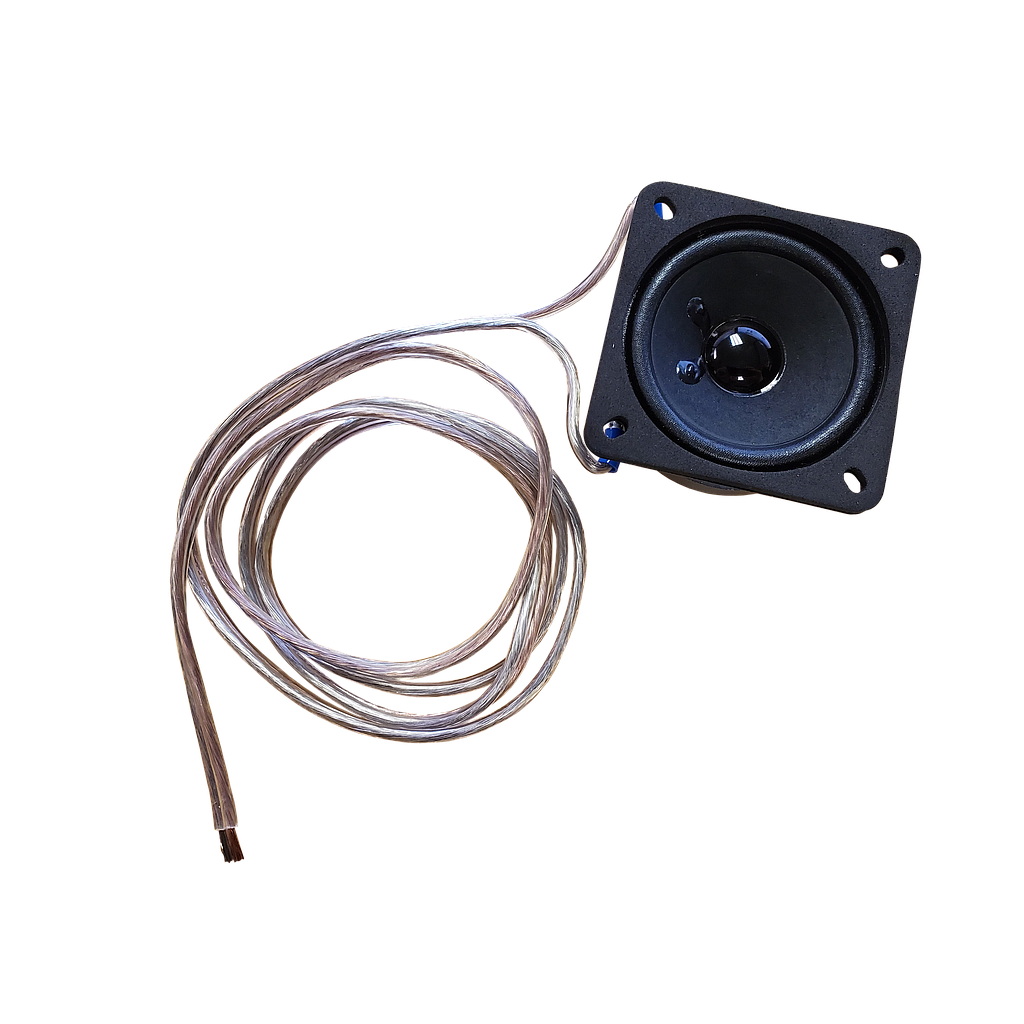

Visaton 8 Watts (15 W max) 2.5" Full-Range Speaker 8 Ohm With 4ft Wire Attached

https://electronics123.odoo.com/web/image/product.template/11179/image_1920?unique=5a4f232
(0 review)

SKU : FRS7-8-4WRE
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FRS7-8-4WRE

25.95 25.95 USD 25.95

25.95

Not Available For Sale

This combination does not exist.

Add to cart

                        Description: Designed to fit the bill for a wide range of outdoor audio applications, Visaton's 2012 FRS7 2-1/2" full-range driver features a water resistant cone. 8-ohm impedance.

                        Features:

                        • Useful for background music and constant voltage PA systems
                        • 2.5", 8-ohm full-range speaker with linear response from 200 Hz to 20 kHz
                        • Paper cone with foam surround
                        • Water-resistant design

                        Product Specifications:

                        • Nominal Diameter: 2-1/2"
                        • Power Handling (RMS): 8 Watts
                        • Power Handling (max): 15 Watts
                        • Impedance: 8 ohms
                        • Frequency Response: 200 to 20,000 Hz
                        • Sensitivity: 88 dB 1W/1m
                        • Voice Coil Diameter: 0.5"

                        Thiele-Small Parameters:

                        Resonant Frequency (Fs)
                        250 Hz
                        DC Resistance (Re)
                        7.2 ohms
                        Voice Coil Inductance (Le)
                        0.3 mH
                        Mechanical Q (Qms)
                        3.32
                        Electromagnetic Q (Qes)
                        2.08
                        Total Q (Qts
                        1.28
                        Compliance Equivalent Volume (Vas)
                        0.01 ft.³
                        Maximum Linear Excursion (Xmax)0.75 mm

                        Mounting Information:

                        Overall Outside Diameter
                        2.62"
                        Baffle Cutout Diameter
                        2.4"
                        Depth
                        1.18"

                        Materials of Construction:

                        • Cone Material: Treated Paper

                        Documentation and Downloads
