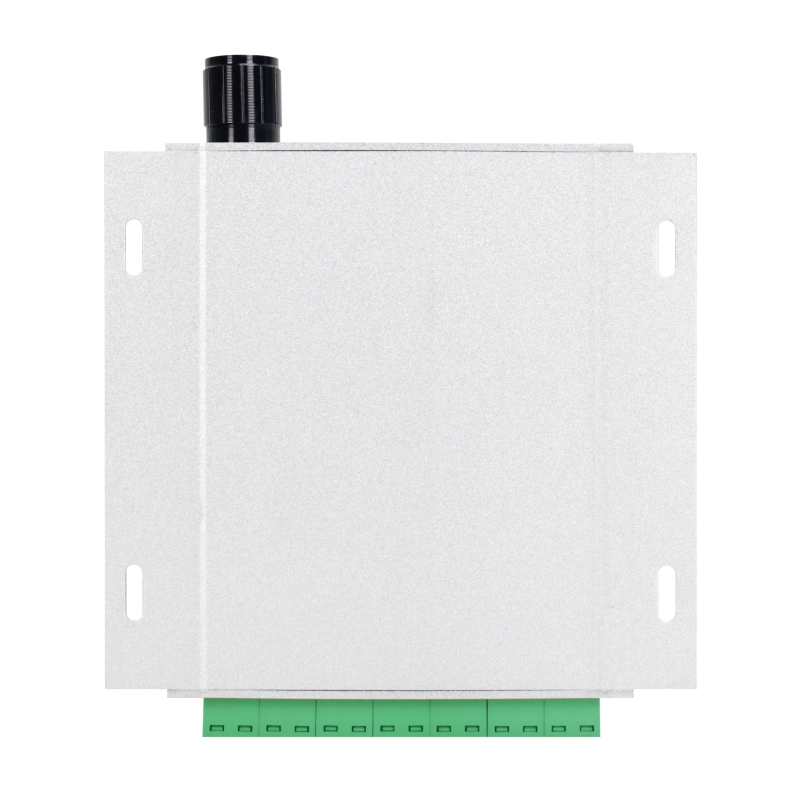

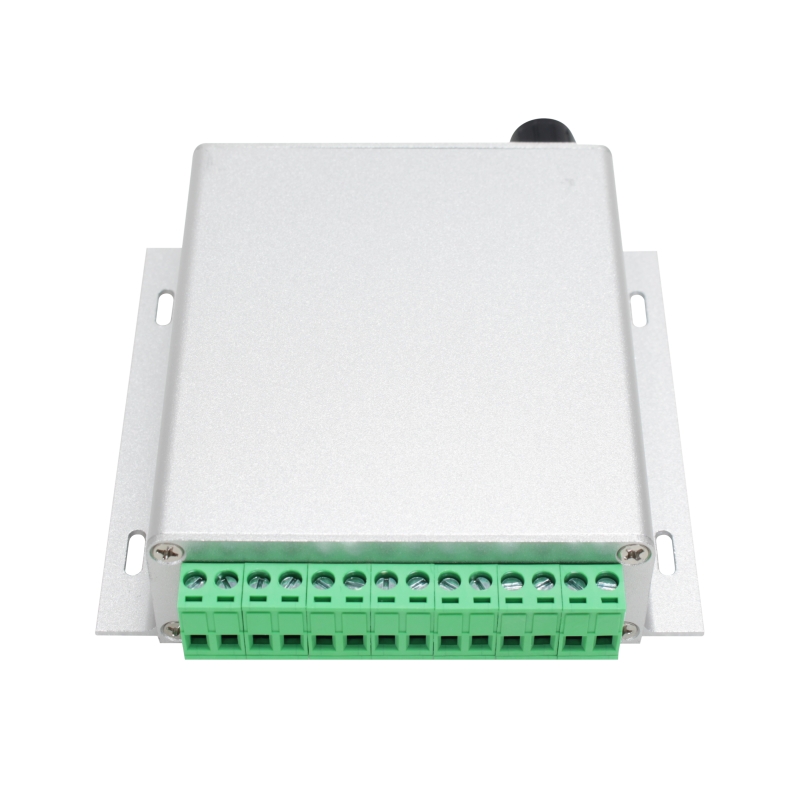

FN-T718A is a MP3 triggerable audio player (industrial audio player) designed to provide stereo audio output for
museum exhibits, talking displays and other industrial/commercial applications. It has not only a built-in 8MB flash
memory but also a slot for a micro SD card as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 7 push buttons for sound activation. Upon activation the unit will immediately play the sound
file once (by default) and become ready for the next activation. And it supports 11-type trigger modes to meet different
needs in different applications. A trigger mode can be set with a config file easily. Besides, it's possible to switch on an
external LED light during playback of a sound file. Please note that a computer is required for copying sound files onto a
storage device (built-in flash memory, micro SD card or USB pen drive).
Features:
- Supports max. 32GB USB flash drive and max. 32GB micro SD card.

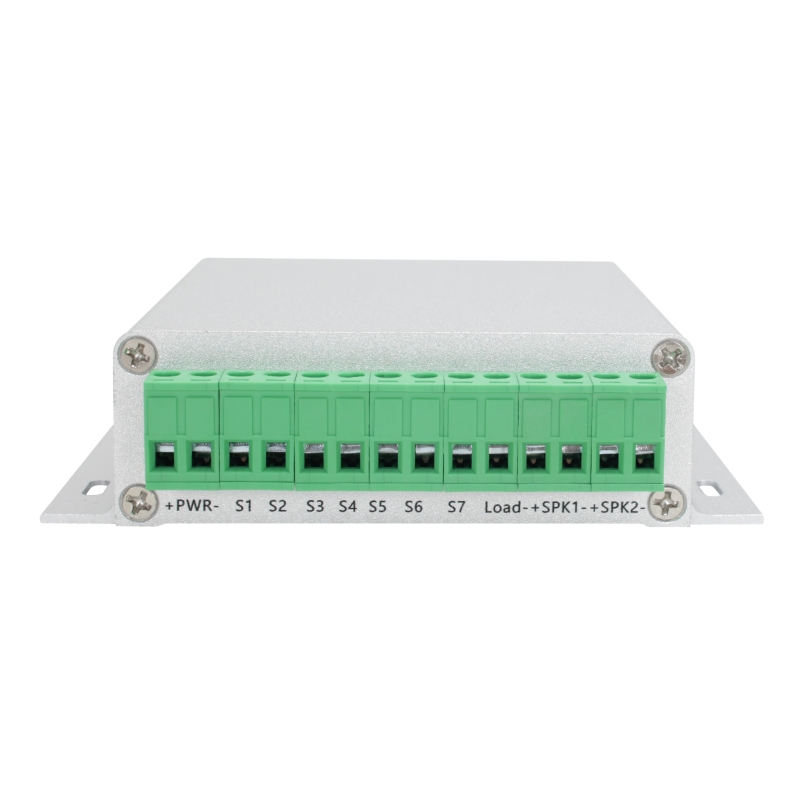

- 7 trigger inputs available and they can be connected with as many as 7 push buttons/switches/relays, etc.
- Supports 11 types of trigger modes and each trigger mode can be set easily through a config file (text document).
- Built-in a class D 50W x 2 amplifier and the audio output is powerful.
- Upload audio files easily on a computer via USB connection.
- Connect the USB-C port to a computer using a USB data cable.
- The internal memory and the micro SD card (if it is inserted) will be detected as USB flash drives on the computer.
- Sound volume is adjustable through turning the volume knob.
- Able to drive external equipment like a warning light or a motor simultaneously when playing a sound.
- Equipped with a 3.5mm audio output jack that can be connected to an external amplifier or an active speaker.
- Adopts a solid and durable aluminum alloy case.
- Industrial-grade design and strong anti-jamming capability.
Technical Parameters:
- Working voltage: 12-24V DC
- Working current: ≥8500mA @12V (when it has two 50W 8 ohm speakers)
- ≥4250mA @24V (when it has two 50W 8 ohm speakers)
- Power consumption: ≤100W
- Flash memory size: 8MB
- Audio format: MP3
