PLEASE NOTE: you need to unscrew the top of the enclosure to upload sounds to the board!!

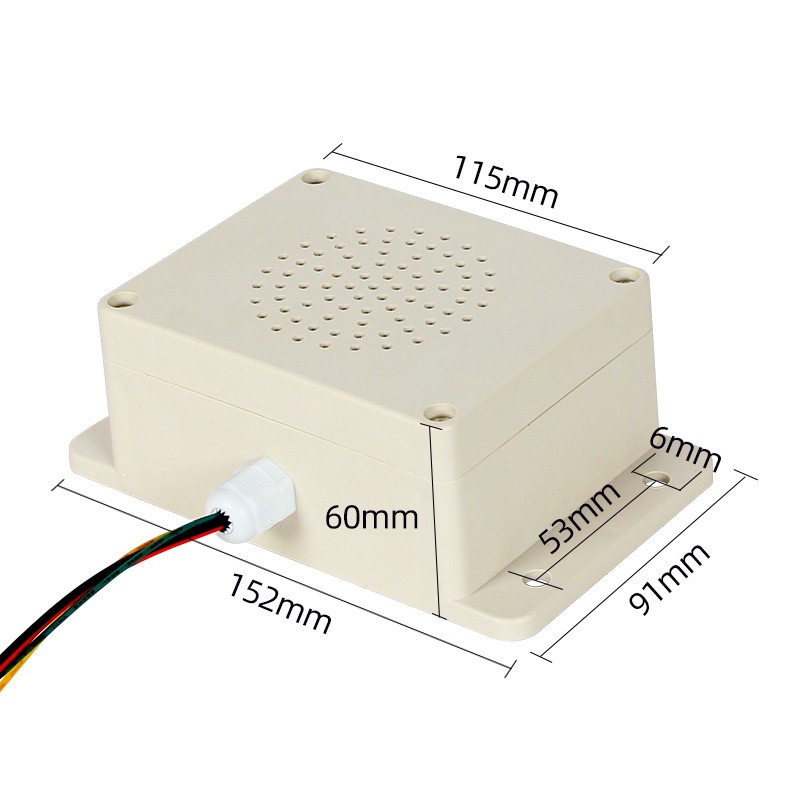

- Adopts industrial grade ABS plastic enclosure.

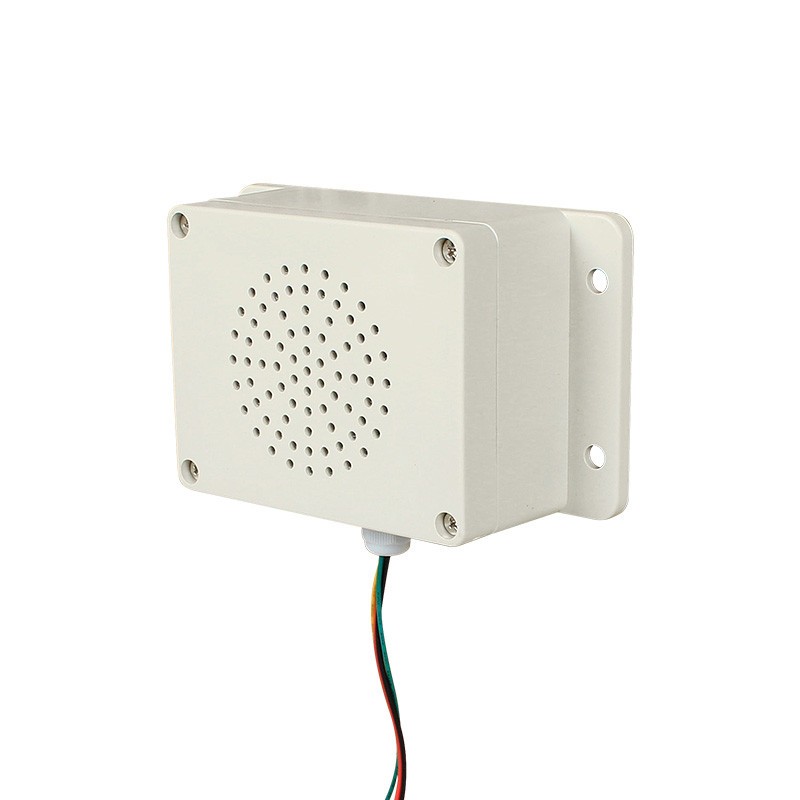

- Two versions (negative trigger version and positive trigger version) optional.
- 4 trigger input wires available (yellow, green, blue, white). -There is an additional black wire as common for the negative trigger version.
- The function/trigger mode of each input port can be set individually through a config file.
- Support 7 main trigger modes and 5 assistant trigger modes.
- Built-in 4Mbytes flash memory by default, and supports max. 32GB micro SD card.
- Update audio files easily through connecting the micro USB port from the internal sound board to computer.
-It will be detected as a USB flash drive on computer.
-When there is an inserted micro SD card on the board, the computer reads the micro SD card directly. In the same way, the device will directly play the sound from the micro SD card.
- Built-in high quality class D amplifier and speaker unit.
- Adjustable sound volume through the small blue potentiometer on the internal sound board, and also possible to
- connect with external buttons to adjust volume.
- Industrial grade design and strong anti-jamming capability.
Features:
- Working voltage: DC 12V-24V
- Working current: ≥1000mA
- Standby current: ≤10mA
- Power consumption: ≤10W
- Flash memory size: 4MB
- Audio format: MP3 or WAV
- Sound pressure level: ≤100dB
- Protection class: IP65
