Recordable MP3 Sound Module for Toys / Gift Boxes (Push Switch) V1.1
(0 review)

Quantity on Hand : 12
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


12.95 12.950000000000001 USD 12.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

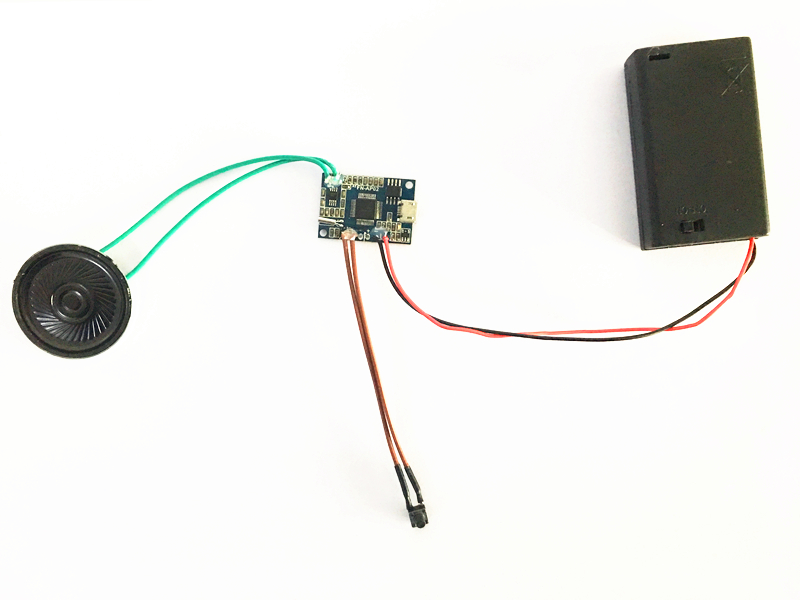

Button-Triggered Sound File Upload All-in-One Kit Built-in Amplifier


  • Built-in a high-quality MP3 decoder chip.

  • Incorporated with a 4MB (32Mbits) flash memory for the storage device.

  • Works with most Windows, Mac, and Linux systems

  • Update MP3 file easily through the micro USB port based on PC.

  • Uses a momentary push button to play the sound file.

  • When the button is pressed, the module plays the sound one time and stops (default mode).

  • Equipped with a 0.5W 8ohm speaker.

  • Low standby current and clear sound output.

  • 3pcs AAA batteries for the power supply.

  • PCB size: 32mmx22mm

Technical Parameters:

  • Working voltage: 3.7V to 5V DC

  • Working current: ≤100mA (Input: 4.5V DC)

  • Quiescent Current: 0mA

  • Power Consumption: ≤0.5W

  • Flash memory size: 4MBytes (32Mbits)

  • Audio format: MP3


  • When the momentary push button is pressed it plays the sound one time and then stops.

  • Pushing the button during playback restart playback of the message from the beginning.

  • After playback is finished pushing button will play sound again.

  • Message CANNOT be looped by toggling switch and holding in on position.

The other trigger settings referred to in the Datasheet is NOT user selectable. It requires a customized unit. Minimum order quantity for that is 500 units. Contact us for a quote.

Documentation and Downloads
