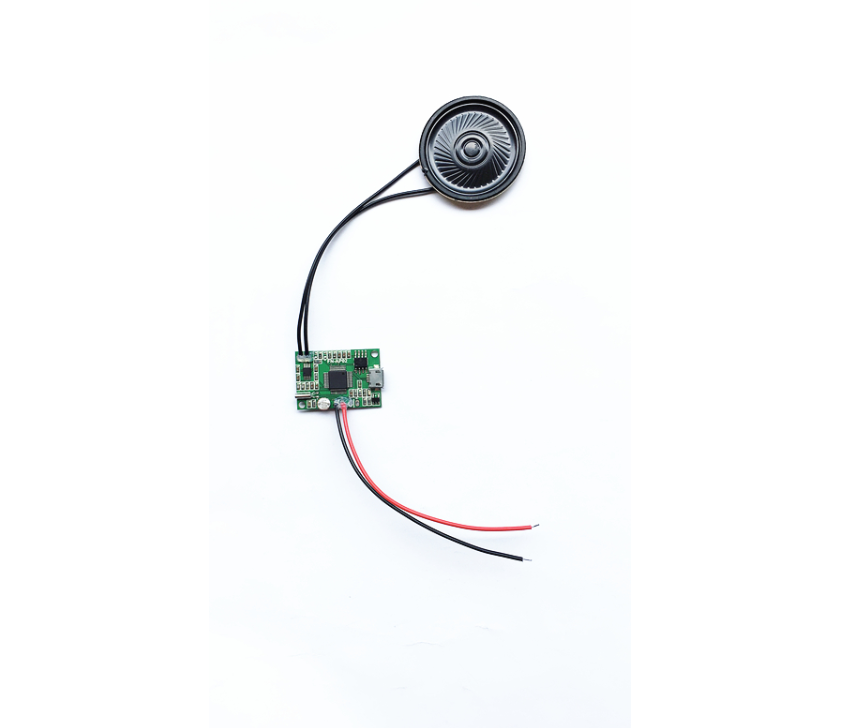

Light Sensor Activated Sound Player Module

https://electronics123.odoo.com/web/image/product.template/11186/image_1920?unique=394a0d7
(0 review)

SKU : FN-AP02-LDR
Quantity on Hand : 17
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-AP02-LDR

10.95 10.950000000000001 USD 10.95

10.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier

Features:

  • Adopts a high-quality MP3 decoder chip on the board.

  • Works with most Windows, Mac, and Linux systems

  • Built-in a 4MB flash memory that can store max. 4 minutes long MP3 file based on 128Kbps.

  • Update the MP3 audio file through the micro USB port on the computer.

  • Supports to store one MP3 audio file only in the flash memory.

  • On-board 1watt amplifier that is able to directly drive a 1W 8ohm speaker.

  • 3.7V to 5V DC power input.

  • Supports 3.7V/4.2V rechargeable lithium battery to be the power supply.

  • Built-in the recharging circuits on the board, and lithium battery can be recharged through the micro USB port.

  • The length of all of the lead wires is 100mm by default.

  • Stable performance and beautiful sound output.

  • PCB size: 32mmx22mm

  • Diameter of Speaker: 40mm

Technical Perimeters:

  • Working voltage: 3.7V to 5V DC

  • Working current: ≤100mA (Input: 4.5V DC)

  • Quiescent Current: 350uA

  • Power Consumption: ≤100mA

  • Flash memory size: 4MBytes(32Mbits)

  • Audio format: MP3

Documentation and Downloads
