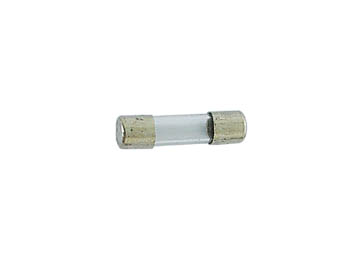

5 x 20mm 8A Fast Acting Fuse (10 Pieces)
SKU : FF8N
Quantity on Hand :
2
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Features
"Fast-acting"
Low breaking capacity
Specifications
Current: 8A
Packaging: 10pcs/box
Test specifications:
opening time:
1.5 In: t>1H
2.1 In: max. 30min.
2.75 In: 50mS4 In: 10mS10 In: max. 20mS
Packaging: 10 pcs/pack
Construction: glass cartridge, silvered caps
Specifications: IEC127, BS4265 and CEE4
Voltage rating: 250V AC
Breaking capacity: 35A
Endurance: cycling test as specified by IEC127 and BS4265
Ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F
