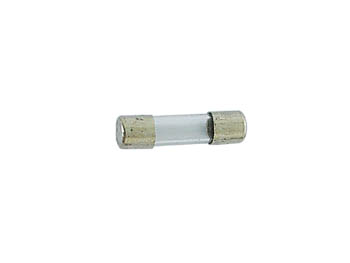

5 x 20mm 0.2A Fast Acting Fuse (10 Pieces)

  • WeightMajor
  • WeightMinor

1.71 1.71 1.71 USD


This combination does not exist.

Add to Cart

SKU : FF0.2N
Quantity on Hand : 3
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions



  • "Fast-acting"

  • Low breaking capacity


  • Current: 200mA

  • Packaging: 10pcs/box

  • Test specifications:

    • Opening time:

      • 1.5 In: t>1H

      • 2.1 In: max. 30min.

      • 2.75 In: 50 mS4 In: 10mS10 In: max. 20mS

  • Packaging: 10 pcs/pack

  • Construction: glass cartridge, silvered caps

  • Specifications: IEC127, BS4265 and CEE4

  • Voltage rating: 250V AC

  • Breaking capacity: 35A

  • Endurance: cycling test as specified by IEC127 and BS4265

  • Ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F
