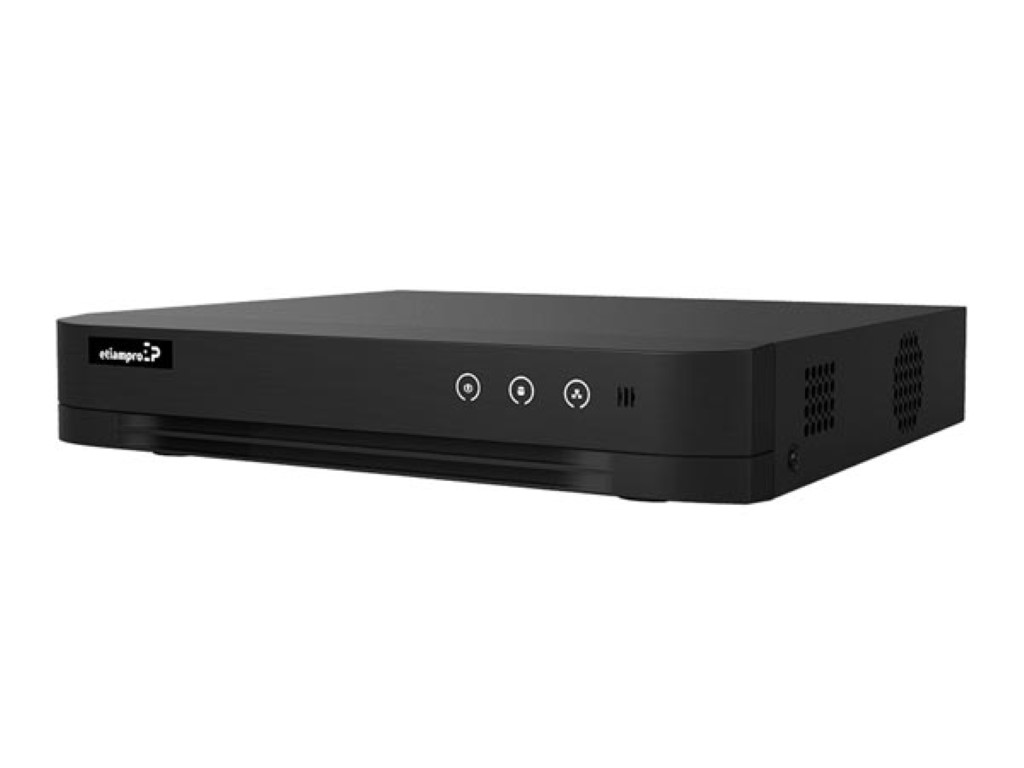

IP Network Recorder - 4 Channels - POE - 1 x 4K

https://electronics123.odoo.com/web/image/product.template/12243/image_1920?unique=53a0daf
(0 review)

SKU : ENVR104
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

156.95 156.95000000000002 USD 156.95

156.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart



Description: Convenient 1U 4-channel NVR with plug & play PoE interfaces. This device supports H.265+ decoding saving bandwidth and storage. Up to 4 IP cameras can be connected. Whether you are home or away, the NVR has got you covered. Allowing you to view your cameras, playback recordings and receive motion notifications from anywhere in the world using the Connect IOS or Android app. This truly 'set and forget' system will allow you to record continuously, set schedules or trigger when there is motion in or around your property.


Features:

HD input:

  • H. 265+ / H. 265 / H. 264+ / H. 264 video formats
  • connectable to third-party network cameras
  • supports up to 4 IP cameras
  • recording at up to 8 MP resolution
  • supports live view, storage and playback of the connected camera at up to 8 MP resolution


HD output:

  • HDMI & VGA simultaneous output
  • HDMI & VGA independent outputs
  • HDMI video output at up to 4K (3840 x 2160) resolution


HD storage:

  • 1 SATA interface connectable for recording and backup
  • H. 265+ compression effectively reduces storage space and costs by up to 75%

HD transmission:

  • 1 self-adaptive 10/100/1000 Mbps network interface
  • 4 independent PoE network interfaces are provided


various applications:

  • centralized management of IP cameras, including configuration, information import/export, real time information display, two-way audio, upgrade, etc
  • Connectable to smart IP cameras and the recording, playing back, and backing up of VCA alarms can be realized
  • supports VCA detection alarm
  • instant playback for assigned channel during multi-channel display mode
  • smart search for efficient playback
  • Android app: Guarding Vision
  • iOS app: Guarding Vision
  • Windows software: Guarding Vision
  • iOS software: Guarding Vision

Specifications:

  • video / audio input:
  • IP video input: 4-ch; up - 8 MP resolution
  • two-way audio: 1-ch, RCA (2.0 Vp-p, 1 k O)

network:

  • incoming bandwidth: 40 Mbps
  • outgoing bandwidth: 80 Mbps


video / audio output:

  • recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA
  • /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • HDMI output resolution: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
  • VGA output resolution: 1-ch, 1920 × 1080p/60Hz,
  • 1600 × 1200/60Hz, 1280 ×
  • 1024/60Hz, 1280 × 720/60Hz,
  • 1024 × 768/60Hz;
  • HDMI/VGA simultaneous output
  • audio output: 1-ch, RCA (linear, 1 KO)


decoding:

  • decoding format: H.265/H.265+/H.264/H.264+/MPEG4
  • live view / playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • synchronous playback: 4-ch
  • capability: 1-ch @ 8 MP / 4-ch @ 1080p


network management:

  • ONVIF certified
  • network protocols: TCP/IP, DHCP, H NFS, iSCSI, UPnP™, HTTPS ik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, ISCSI, UPnP, HTTPS


hard disk:

  • SATA: 1 SATA interface
  • capacity: up to 6TB capacity for each disk


external interface:

  • network interface (external interface): 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet port
  • USB interface: 2x USB 2.0


POE interface:

  • network interface (POE interface): 4, RJ45 10/100 Mbps; self-adaptive Ethernet port
  • power (POE interface): 50 W
  • standard: IEEE 802.3 af/at


general:

  • power supply: 48 VDC
  • power (general): 65 W
  • consumption (without HDD): 10 W (without PoE)
  • working temperature: -10 - +55º C
  • working humidity: 10 - 90 %
  • chassis: 1U chassis
  • dimensions: 315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
  • weight: 1 kg

Videos:

  1. Install Guide
  2. Camera Configuration & record setup
  3. Video backup on USB drive
  4. Smartphone connection setup
