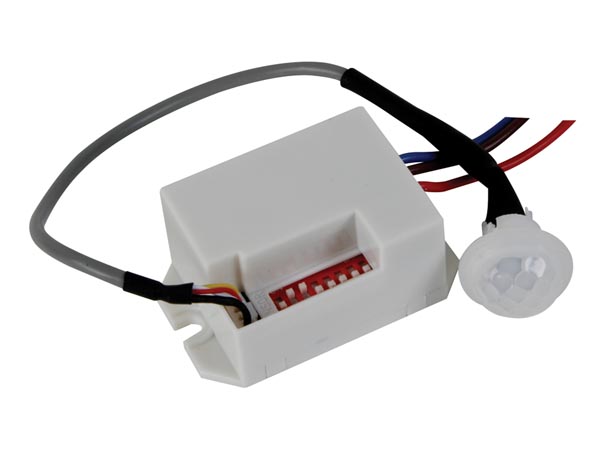

Mini PIR Motion Detector - Build In time delay- 12 Vdc

https://electronics123.odoo.com/web/image/product.template/8336/image_1920?unique=360aa0a
(0 review)

SKU : EMS114
Quantity on Hand : 3
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

EMS114

15.95 15.950000000000001 USD 15.95

15.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Features:

  • 12 Vdc version
  • with automatic day/night identification
  • light sensitivity and ON-time adjustable
  • for building in

Specifications:

  • switch type: relay
  • detection angle: 100°
  • detection range: 26 ft. (@ 70 °F)
  • rated load: 25 W resistive load (maximum inrush current 2.1 A)
  • input: 12 Vdc ± 1V, 2.6 A
  • output: max. 12 Vdc 2.5 A / 25 W
  • quiescent current: 5 mA
  • current with energised relais: 50 mA
  • working temperature: -10 °C to +40 °C
  • working humidity: < 93 % RH
  • time-delay switch: 5 s, 30 s, 1 min, 3 min, 5 min, 8 min
  • light control: < 3 lx to 2000 lx
  • cable length: ± 18 cm
  • dimensions:
    • visible part: Ø 0.8" x 0.39"
    • hidden part (controller): 2.16" x 0.98" x 1.37"
  • weight: ± 1.5 oz
DIP Switch selections


​ON
​OFF

​light sensitivity
​< 10 lx
​always

movement sensitivity
​low
​high
​5”
​on-time
​5 seconds
​-
30”on time​30 seconds​-
1’​on-time ​1 minute​-
​3’​on-time3 minutes​-
​5’ ​on-time​5 minutes​-
​8’​on-time​8 minutes​-
NOTE: Only the highest selected on-time will be applicable.
