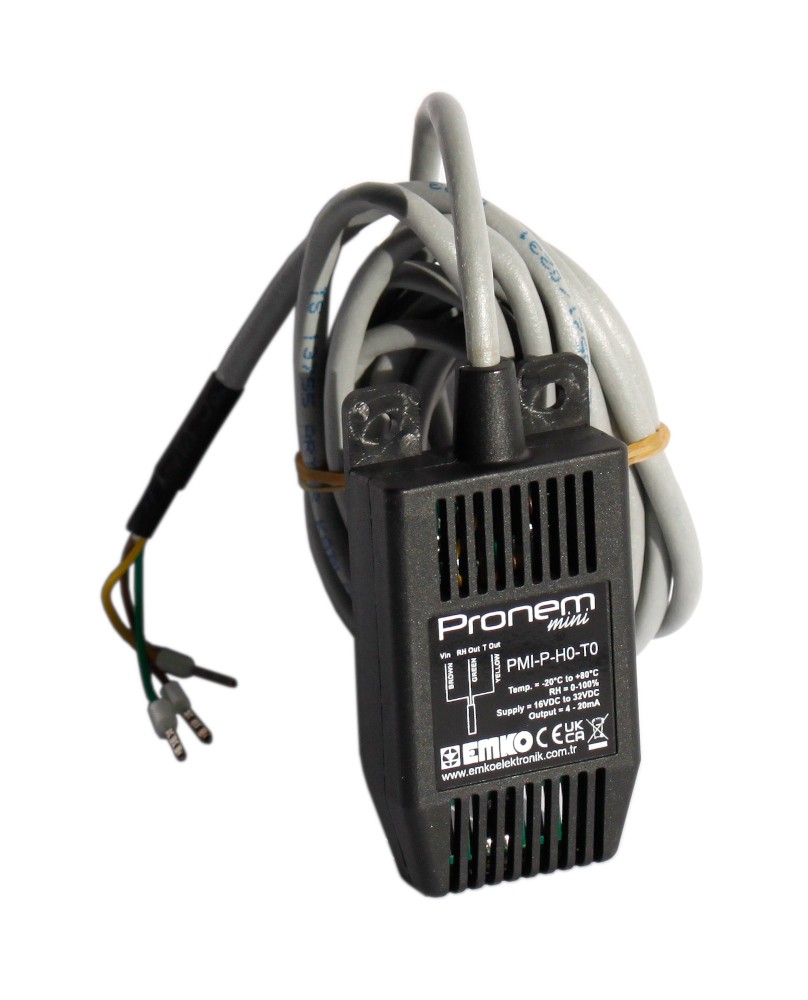

Pronem Mini Temperature and Humidity Sensor 4 to 20 mA output

The Pronem mini from Emko Elektronik are microprocessor based instruments that incorporate high accurate and stable sensors that convert ambient temperature and humidity to linear 4 to 20 mA. Dimensions are only 40x 79 x 16mm

Temperature range -20 to 80degc and Humidity 0 to 100% (non condensing)

Applications include

  -HVAC/ Building Controls

  -Poultry House Automation

  -Greenhouse Applications

  -Food Factories and Warehouses

  -Cold Storage

  -Pharmaceutical

  -Air Conditioning Automation and Air Conditioners

  -Textile Applications

  -Clean Rooms and Laboratories

Specifications

Power supply: 12 to 32 VDC 1.5W

Output Signal: 4 to 20 mA

Analogue Out. Sign. Accuracy (Current): +/- %0,5

Operating limits:

Sensor : -20 to 80 °C, 0% to 100% RH

Electronic circuit: --40°C...+85°C , 0% to 95% RH

RH channel:

Range: 0 to 100%

Accuracy: ±2% RH @ 23 °C

Stability:<0.5 %RH/year (Typ )

Temperature channel:

Range: -20 to 80degC

Accuracy: ±0.3°C @ 23 °C

Stability: ±<0,04°C/year (Typ)

Dimensions: 40 × 79 × 16 mm

Manufacturer Part No: PMI-P-H0/T0.1.0
