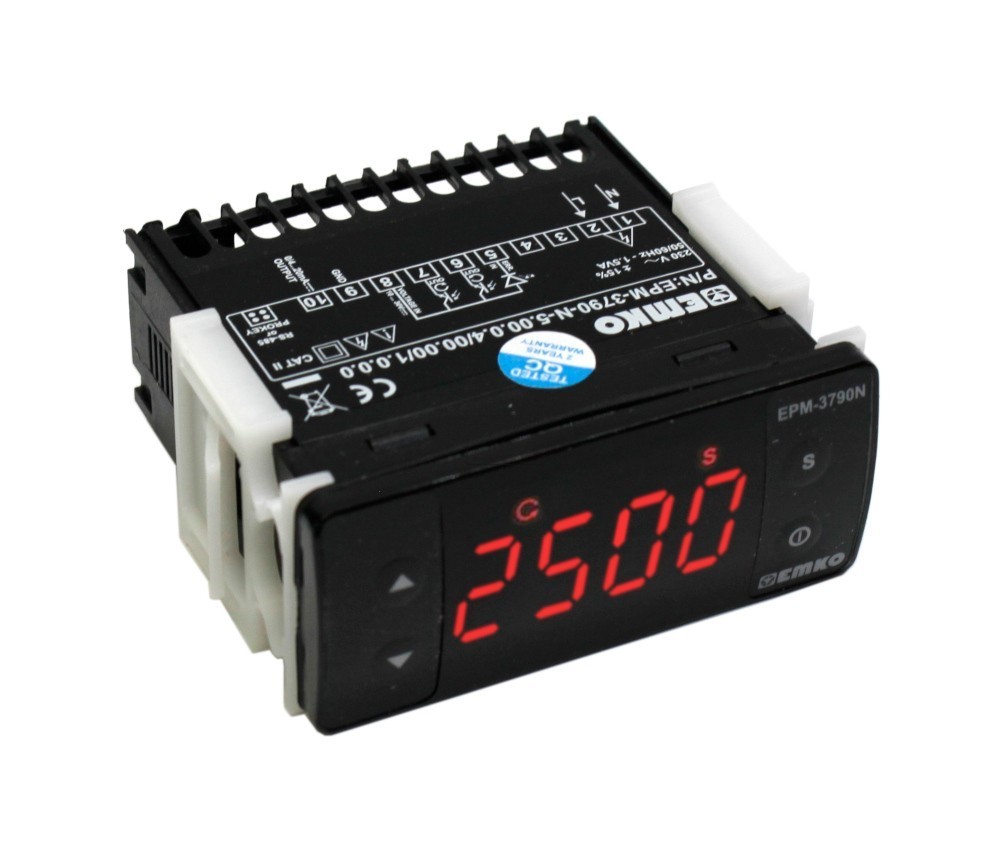

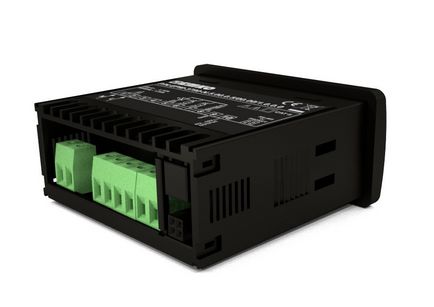

The EPM-3790 from Emko Elektronik allows for generating user-defined current (in the 0-20mA or 4-20 mA range). In instrumentation and control systems, these devices can replace any analogue (potentiometer-based) process value sets in a two-wire 4-20 mA current system.
Features:
4 Digits Display
Configurable display scale between -1999 and 9999
Forward, Reverse direction outputs and error input for VFD Speed Controller
Easy Adjustable Set Value from front panel
0/4...20mAdc Current output (option 0-10V)
Adjustable decimal point
Adjustable Ramp Up and Down Time
Set value low limit and set value high limit boundaries
Manufacturer part: EPM-3790-N.5.0.0.4/00-00/1.0.0.0
Features:
- Power supply 230 Vac (+%15) 50/60 Hz. 1.5 VA (option 24 Vac/dc (+%15, +%10) )
- Power consumption 1.5VA
- Outputs Current: 4-20 mA Direction output Max. 5mA @ 30Vdc
- Dimensions 77 x 35 x 63mm Panel cutout 71 x 29mm
- Weight 200 gm
- Operating temperature 0°C ÷ +50°C (standard)
- Display LED, 4 x 10 mm red digits
- Resolution 12 bit
- Measurement range -1999 ÷ 9999 plus decimal point
