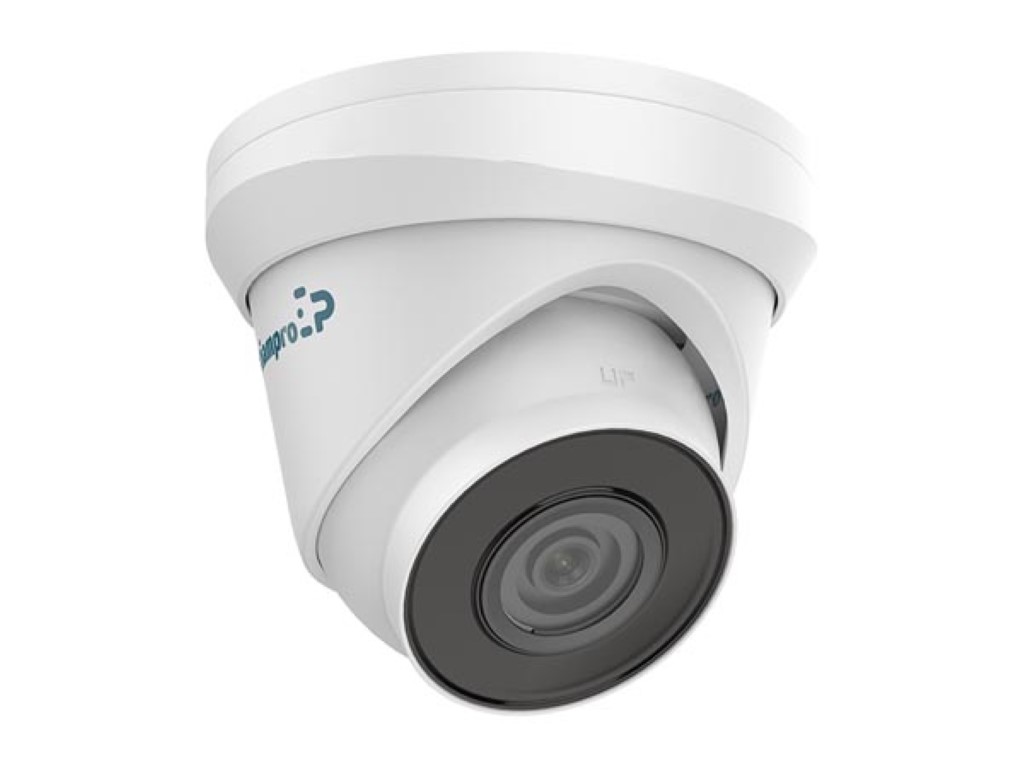

2 MP IR FIXED NETWORK TURRET CAMERA (IP) - WHITE

https://electronics123.odoo.com/web/image/product.template/12242/image_1920?unique=9e079ff
(0 review)

SKU : ECAMIP101
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

83.95 83.95 USD 83.95

83.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

2 megapixel IP indoor/outdoor turret-type camera. The camera has 2 high power IR LED built-in for night surveillance up to 30 meter. With its Wide Dynamic Range (WDR) technology image fidelity without detail loss is guaranteed Optimal compression supporting H.265+ With no difficult IP setup and only one cable for power and data, the PoE feature connects cameras and NVRs quickly and easily.


  • camera with solid premium aluminium base and plastic decorative ring
  • 1/2.8" progressive scan CMOS
  • 1920 x 1080 @30 fps
  • 2.8 mm fixed lens
  • H. 265+ / H. 265 / H. 264+ / H. 264 video formats
  • 3D DNR
  • up to 30 m IR range
  • IP67


various applications:


Features:

camera:

  • image sensor: 1/2.8" progressive scan CMOS
  • min. illumination: colour: 0.01 lux @ F1.2 (AGC on) - 0.028 lux @ F2.0 (AGC on)
  • shutter speed: 1/3 s - 1/100,000 s
  • slow shutter: yes
  • auto-iris: no
  • day & night: IR cut filter
  • digital noise reduction: 3D DNR
  • WDR: DWDR
  • angle adjustment: pan: 0° - 360°, tilt: 0° - 75°, rotation: 0° - 360°


lens:

  • focal length: 2.8 mm
  • aperture: F2.0
  • focus: fixed
  • field of view: 2.8 mm, horizontal 114.8°, vertical 62°, diagonal 135.5°
  • lens mount: M12

IR:

  • max. IR range: 30 m
  • wavelength: 850 nm


compression standard:

  • video compression: main stream: H. 265+ / H. 265 / H. 264+ / H. 264: sub stream: H. 265 / H. 264 / MJPEG
  • H.264 type: main profile / high profile / baseline profile
  • H. 265 type: main profile
  • video bit rate: 32 Kbps - 8 Mbps


smart feature set:

  • region of interest: 1 fixed region for main stream and sub-stream
  • image:
  • max. resolution: 1920 x 1080
  • main stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • max. frame rate (image): 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • sub-stream: 50 Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
  • Max. frame rate (picture): 60 Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
  • image enhancement: BLC, 3D DNR
  • image settings: saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • day/night switch: auto/scheduled, day, night


network:

  • alarm trigger: motion detection, video tampering alarm, illegal login
  • protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • general functions: anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • firmware version: V5.5.83
  • API: ONVIF (PROFILE S), ISAPI
  • simultaneous live view: up to 6 channels
  • user / host: up to 32 users; 3 levels: Administrator - Operator - User
  • web browser: IE8+, Chrome 41.0-44, Firefox 30.0-11

interface:

  • network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet port


general:

  • operating Conditions: -30 °C - 60 °C (-22 °F - 140 °F), humidity 95 % or less (non-condensing)
  • power supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • power consumption and current: 12 VDC, 0.3 A, max: 3.5 W; PoE: (802.3af, 36 V - 57 V), 0.2 A - 0.1 A, Max: 4.5 W
  • IP rating: IP67
  • material: metal
  • dimensions: Ø 128 mm x 117 mm (Ø 5.04" x 4.6")
  • weight: 360 g (0.8 lb.)
