DVR6603G - Portable DVR Module NTSC793936794364
(0 review)

SKU : DVR6603G
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


9.00 9.0 USD 9.00


Not Available For Sale

    This combination does not exist.

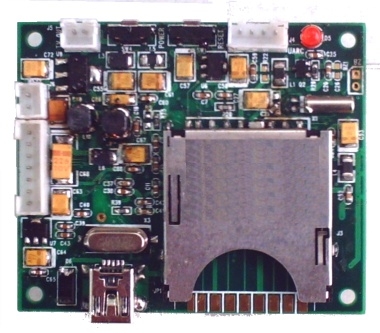

      Description: This portable DVR module is very simple to operate. It can snap an image or record a video clip with one click. Accept analog video signal as input.

      PLEASE NOTE: The default setting is for NTSC. However in the menu the user can change it to PAL.


      • Small in size (50x60mm)

      • 1-channel video input

      • JPG – 720x480 (NTSC)

      •  / 720x576 (PAL)

      • AVI – 720x480 (NTSC) 30fps MJPEG

      •  / 720x576 (PAL) 25fps MJPEG

      • Video clip length 1-120sec

      • SD card support up to 16G

      • USB Mass Storage

      • CVBS out to TV monitor

      • Operation voltage 6V

      • Low battery detection

      • Different LED flash pattern to show status

      Application Example: Belt Clip Recorder (Please note belt clip case is not included)

      Documentation and Downloads
