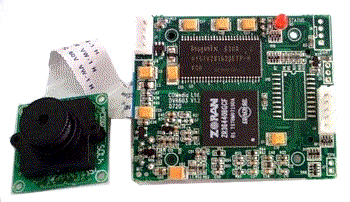

DVR623 - DSC / DV module for Hobbyist

    15.33 15.33 15.33 USD


    This combination does not exist.

    Add to Cart

    SKU : DVR623
    Quantity on Hand : 2
    Skill Level : Assembled and Tested
    ROHS Compliant

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!

    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions


      Description: This module has been designed for very simple application. It can be configured to a special DSC or DV with various settings for hobbyist making his own recording device.


      • Built in meg pixel image sensor

      • Real time Video output to TV

      • RTC, OSD

      • Storage to SD card

      • DV:

        • Image size VGA or QVGA

        • Variable frame rate setting 1, 10, 30fps

        • Variable recording duration 1 -99 sec

        • Preset capture schedule, daily or periodic

        • Trigger input for unlimited capture duration

        • Manual key input for arbitrary duration capture

      • DSC

        • High Quality JPEG image of mega pixel

        • High quality image setting 3M, 1.3M and VGA

        • Preset capture schedule, daily or periodic

        • External trigger input or keyboard snap shot

      Kit Include:

      • DVR623 module with sensor

      • RCA + Power cable combo

      • 3 pin cable

      • Keyboard

      Hint: When the DVR623 is booted up it defaults to the PAL system which means the TV image will be scrolling in black and white. This makes it difficult to see the menu as it is scrolling. Following these key presses exactly will negate the need to read the scrolling menu and will to change the value to NTSC which will stop the scrolling:

      • Hold MODE key in for at least 3 seconds until you enter the system setup

      • Press DOWN key once.

      • Press OK key once.

      • Press RIGHT key once.

      • Press DOWN key once.

      • Press OK key once.

      The system should now be in NTSC.
