LilyPad ProtoSnap Plus

https://electronics123.odoo.com/web/image/product.template/11088/image_1920?unique=001915b
(0 review)

SKU : DEV-14346
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

DEV-14346

42.95 42.95 USD 42.95

42.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The LilyPad ProtoSnap Plus is a sewable electronics prototyping board that you can use to explore circuits and programming, then break apart to make an interactive fabric or wearable project. Programming the ProtoSnap Plus is easy with the free Arduino software you’ll need to program the ATmega32U4 on LilyPad USB Plus at the heart of the board. Once you’ve installed the software, you’ll be able to write and upload your own programs to the board, making it do almost anything you want. At the center of the ProtoSnap Plus is the LilyPad USB Plus microcontroller, pre-wired to a LilyPad board including a LilyPad Light Sensor, LilyPad Buzzer, LilyPad Button Board, four pairs of colored LilyPad LEDs and a LilyPad Slide Switch. Because these components are connected together on the ProtoSnap board, you can test out your project ideas before you sew. The ProtoSnap Plus also includes expansion ports that let you sew your wearables together or use alligator cables to easily connect external sensors and components. After testing out your coding ideas using the attached LilyPad pieces, you can break apart the prototyping board and sew them into your project! Please be aware that the Lilypad ProtoSnap Plus is NOT supported on Windows 7/8 due to a lack of support drivers for those specific OS's. Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education in e-textiles. Included: 1x LilyPad USB Plus 1x LilyPad Light Sensor 1x LilyPad Buzzer 1x LilyPad Button 1x LilyPad Switch 2x LilyPad LED - Yellow 2x LilyPad LED - Red 2x LilyPad LED - Green 2x LilyPad LED - Blue 5x Expansion Portsdescription: The LilyPad ProtoSnap Plus is a sewable electronics prototyping board that you can use to explore circuits and programming, then break apart to make an interactive fabric or wearable project. Programming the ProtoSnap Plus is easy with the free Arduino software you%E2%80%99ll need to program the ATmega32U4 on LilyPad USB Plus at the heart of the board. Once you%E2%80%99ve installed the software, you%E2%80%99ll be able to write and upload your own programs to the board, making it do almost anything you want.At the center of the ProtoSnap Plus is the LilyPad USB Plus microcontroller, pre-wired to a LilyPad board including a LilyPad Light Sensor, LilyPad Buzzer, LilyPad Button Board, four pairs of colored LilyPad LEDs and a LilyPad Slide Switch. Because these components are connected together on the ProtoSnap board, you can test out your project ideas before you sew. The ProtoSnap Plus also includes expansion ports that let you sew your wearables together or use alligator cables to easily connect external sensors and components. After testing out your coding ideas using the attached LilyPad pieces, you can break apart the prototyping board and sew them into your project!Please be aware that the Lilypad ProtoSnap Plus is NOT supported on Windows 7/8 due to a lack of support drivers for those specific OS's.Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education in e-textiles.Included: 1x LilyPad USB Plus1x LilyPad Light Sensor1x LilyPad Buzzer1x LilyPad Button1x LilyPad Switch2x LilyPad LED - Yellow2x LilyPad LED - Red2x LilyPad LED - Green2x LilyPad LED - Blue5x Expansion Ports

Description: The LilyPad ProtoSnap Plus is a sewable electronics prototyping board that you can use to explore circuits and programming, then break apart to make an interactive fabric or wearable project. Programming the ProtoSnap Plus is easy with the free Arduino software you’ll need to program the ATmega32U4 on LilyPad USB Plus at the heart of the board. Once you’ve installed the software, you’ll be able to write and upload your own programs to the board, making it do almost anything you want.

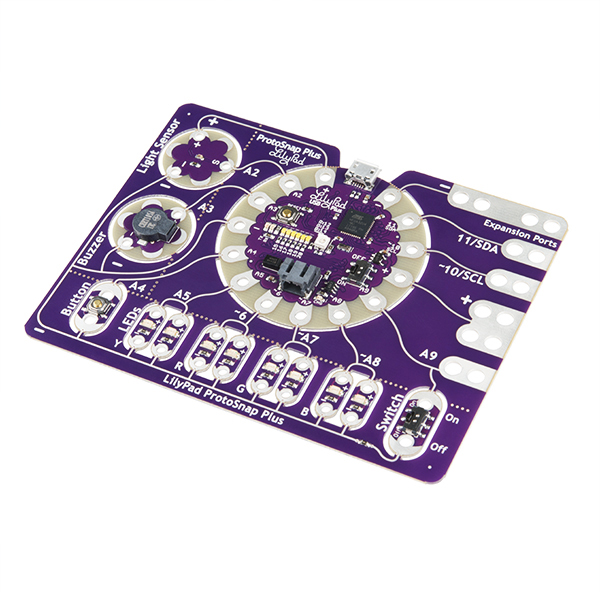

At the center of the ProtoSnap Plus is the LilyPad USB Plus microcontroller, pre-wired to a LilyPad board including a LilyPad Light Sensor, LilyPad Buzzer, LilyPad Button Board, four pairs of colored LilyPad LEDs and a LilyPad Slide Switch. Because these components are connected together on the ProtoSnap board, you can test out your project ideas before you sew. The ProtoSnap Plus also includes expansion ports that let you sew your wearables together or use alligator cables to easily connect external sensors and components. After testing out your coding ideas using the attached LilyPad pieces, you can break apart the prototyping board and sew them into your project!

Please be aware that the Lilypad ProtoSnap Plus is NOT supported on Windows 7/8 due to a lack of support drivers for those specific OS's.

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education in e-textiles.

Included:

  • 1x LilyPad USB Plus
  • 1x LilyPad Light Sensor
  • 1x LilyPad Buzzer
  • 1x LilyPad Button
  • 1x LilyPad Switch
  • 2x LilyPad LED - Yellow
  • 2x LilyPad LED - Red
  • 2x LilyPad LED - Green
  • 2x LilyPad LED - Blue
  • 5x Expansion Ports

Documentation and Downloads
