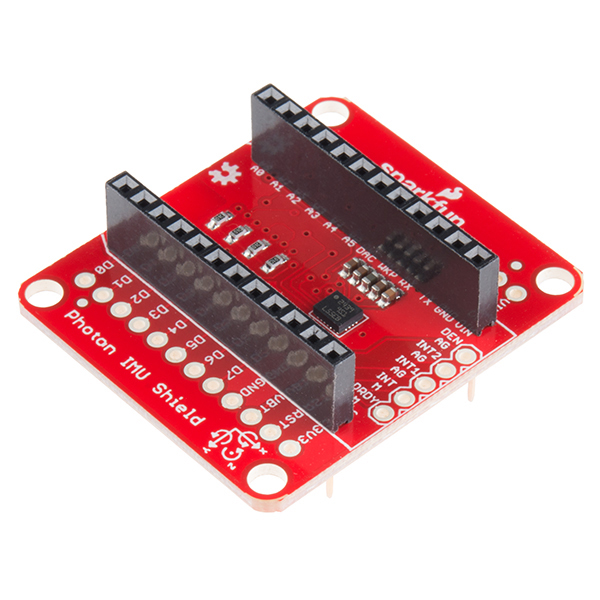

SparkFun Photon IMU Shield

https://electronics123.odoo.com/web/image/product.template/11194/image_1920?unique=0e8ac9f
(0 review)

SKU : DEV-13629
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

DEV-13629

19.95 19.95 USD 19.95

19.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

Description: This is the SparkFun Photon IMU Shield, a versatile motion-sensing add-on board for your Photon device. Each IMU shield is equipped with an on-board LSM9DS1 system-in-a-chip that houses a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. That's right, 9 degrees of freedom (9DOF) from a single IC!

Each sensor in the LSM9DS1 supports a large variety of ranges: the accelerometer’s scale can be set to ± 2, 4, 6, 8, or 16 g, the gyroscope supports ± 245, 500, and 2000 °/s, and the magnetometer has full-scale ranges of ± 2, 4, 8, or 12 gauss. The SparkFun Photon IMU Shield comes with the headers already soldered on, so you can plug and play!

The Particle Photon is a tiny WiFi development kit for creating connected projects and products. Sporting a 120Mhz ARM Cortex M3 and built-in WiFi, the Photon is not only powerful, but easy to use. The small form factor is ideal for IoT projects with cloud-connectivity.

Note: Not only can this shield operate with the Photon, it can also be used with the Particle Core! We understand that there are a ton of you out there who still haven't been able to get your hands on a Photon yet and would like to start playing with this shield now. If that person is you we hope we have obliged!

Features:

  • 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels

  • ±2/±4/±6/±8/±16 g linear acceleration full scale

  • ±2/±4/±8/±12 gauss magnetic full scale

  • ±245/±500/±2000 dps angular rate full scale

  • 16-bit data output

  • Headers and Connectors Pre-Soldered

  • Compatible with the Photon and the Core
