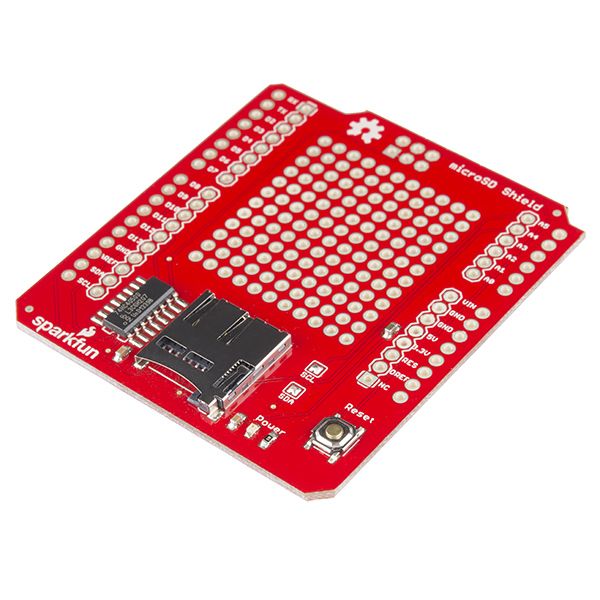

SparkFun microSD Shield

https://electronics123.odoo.com/web/image/product.template/8564/image_1920?unique=043f4f5
(0 review)

SKU : DEV-12761
Quantity on Hand : 9
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

DEV-12761

17.95 17.95 USD 17.95

17.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: Running out of memory space in your Arduino project? The SparkFun microSD Shield equips your Arduino with mass-storage capability, so you can use it for data-logging or other related projects.

Communication with microSD cards is achieved over an SPI interface. The SCK, DI, and DO pins of the microSD socket are broken out to the ATmega168/328’s standard SPI pins (digital 11-13), while the CS pin is broken out to Arduino’s D8 pin. If you decide to use one of the many open source FAT libraries (like FAT16 or SDFat) make sure to change the code to reflect the location of the CS pin.

Most libraries assume the CS pin is connected to D10; this will have to be changed to D8. Also for the libraries to work pin D8 will have to be set as an output in the ‘setup()’ section of your sketch. The shield also includes a large prototyping area with a 13x12 grid of 0.1" pitch PTHs.


Documentation and Downloads
