Arduino Pro Mini 328 - 5V/16MHz
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

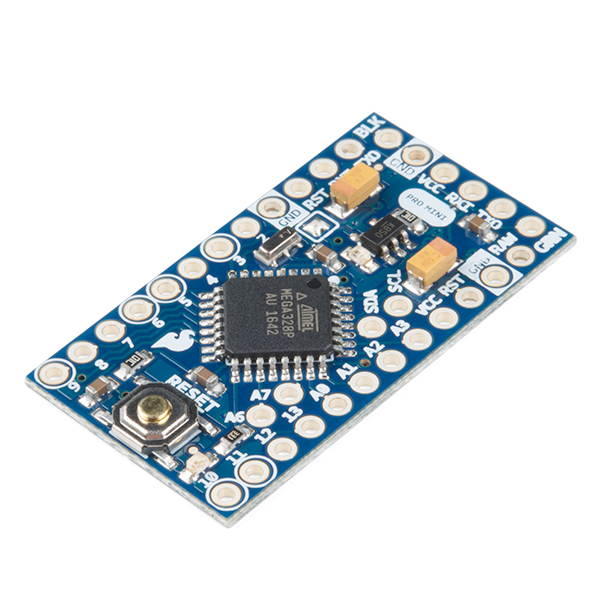

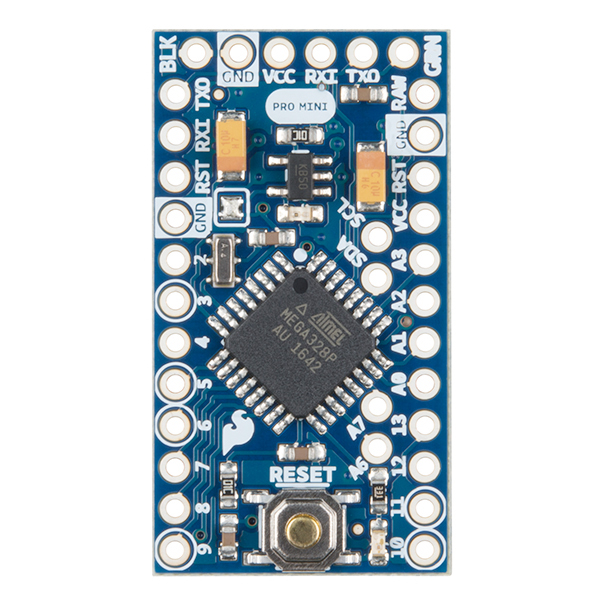

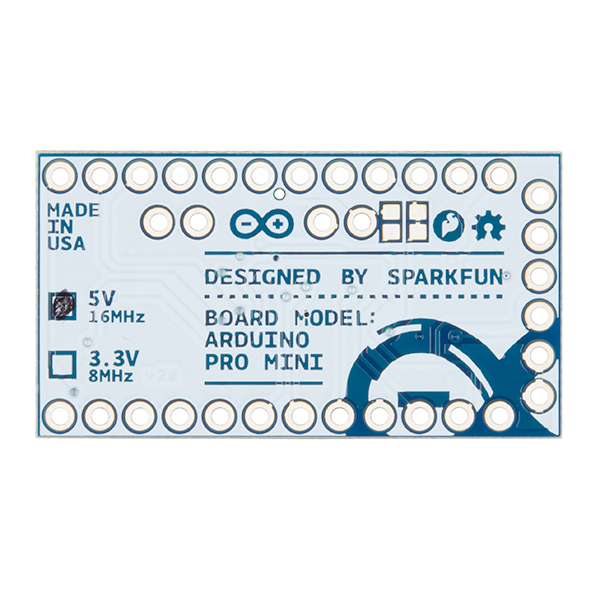

We really wanted to minimize the cost of an Arduino. The Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.
The latest and greatest version of this board (this version) breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors! We also took the opportunity to slap it with the OSHW logo.
Note: A portion of this sale is given back to Arduino LLC to help fund continued development of new tools and new IDE features.
This replaces DEV09218.
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- DC input 5V up to 12V
- On board Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
- 0.7x1.3" (18x33mm)
- Less than 2 grams
