SparkFun Joystick Shield Kit

(0 review)

SKU : DEV-09760
Quantity on Hand : 3
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


9.95 9.950000000000001 USD 9.95


    This combination does not exist.

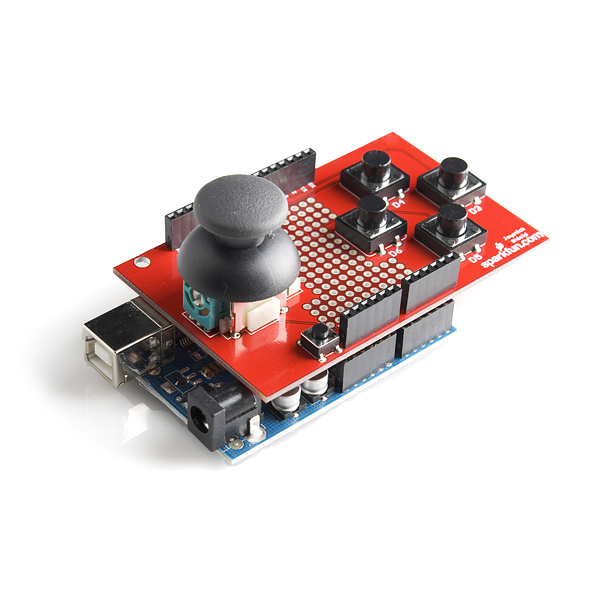

    Description: The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is required, but it's relatively easy and requires minimal tools. We even have a step by step guide!

    The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

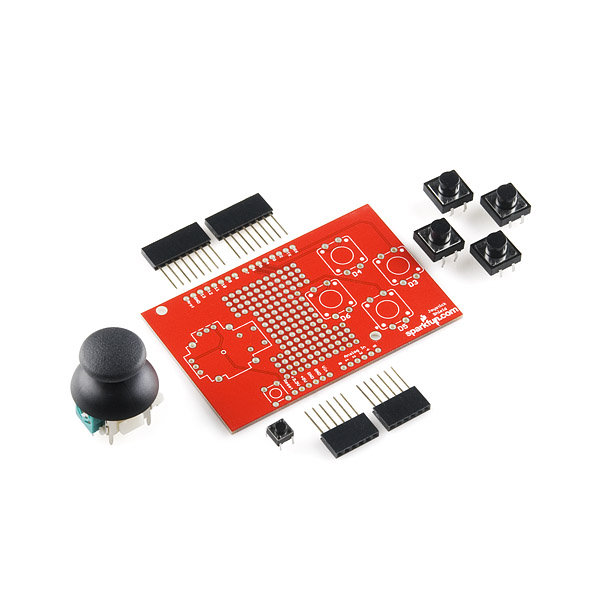

    Features: 1x Joystick Shield PCB

    4x Momentary Push Button Switch - 12mm Square

    1x Thumb Joystick

    1x Mini Push Button Switch (breaks out Arduino's reset switch)

    2x 6-pin Arduino Stackable Header

    2x 8-pin Arduino Stackable Header
