GBMA 4-20mA Input 5 Digit Large Display

https://electronics123.odoo.com/web/image/product.template/12065/image_1920?unique=7a2c6af
(0 review)

SKU : DBI-001
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

GBMA-5-2A6-D-R2NN

785.00 785.0 USD 785.00

785.00

Not Available For Sale

This combination does not exist.

Add to cart

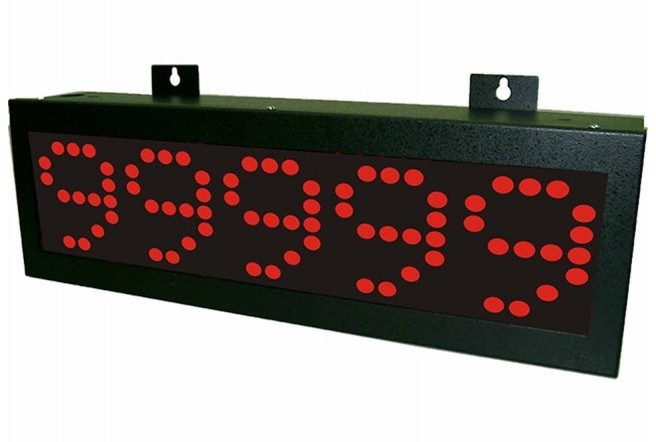

Description: Large five digit universal process indicator accepts 4 to 20 mA signal. Features include 24 VDC excitation for powering 4 to 20 mA transmitters and 2 alarm relays. 24 VDC powered.

This large high performance digital panel meter features a bright 100 mm high display which can be seen 50 metres away. Setup is done using a handheld infra-red remote. 3 or 4 digit displays are also available

Features:

  • Dot-matrix digits for better readability when compared to 7-segment displays
  • Parameters set by infrared remote control
  • Max. Hold / Data Hold / Reset
  • 2 programmable (High or Low) alarm relays
  • Easy connection using plugabble screw terminals
  • Password protection to prevent tampering

Specifications:

    Power supply:

    • AC/DC: 100~240V
    • DC: 12 / 24 / 30~90V

    Input signal: 4 to 20 mA.

    Output: Isolated 24 VDC for field transmitters

    Power consumption: 8.5 VA

    Accuracy: ±0.1% F.S. ±1 digit

    Programmable scaling: -1999 to +9999 selectable decimal point and adjustable digital filter.

    Sampling time: Up to 60 cycles / sec

    Working temperature: 0 to 60 °C

    Working humidity: 20 to 90%

    Dimension: 600 × 150 × 100 mm.

    Manufacturer: GBMA-5-2A6-D-R2NN

Documentation and Downloads
