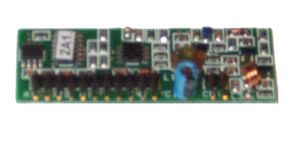

Description: Processes the received signal via a bandpass filter, amplifier and Schmitt trigger. Its output delivers a digital pulse train to the decoder IC. Please note that the receiver module must be built into a circuit by the user. It does nothing as supplied here.
Specifications:
PCB size: 47mm x 16mm (1.85inch x 0.63inch)
