Siren Sound Generator COB

https://electronics123.odoo.com/web/image/product.template/3470/image_1920?unique=01b6919
(0 review)

SKU : CPSSG11
Quantity on Hand : 981
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

CPSSG11 MDCGF961

0.15 0.15 USD 0.15

0.15

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Solder Pad Connection

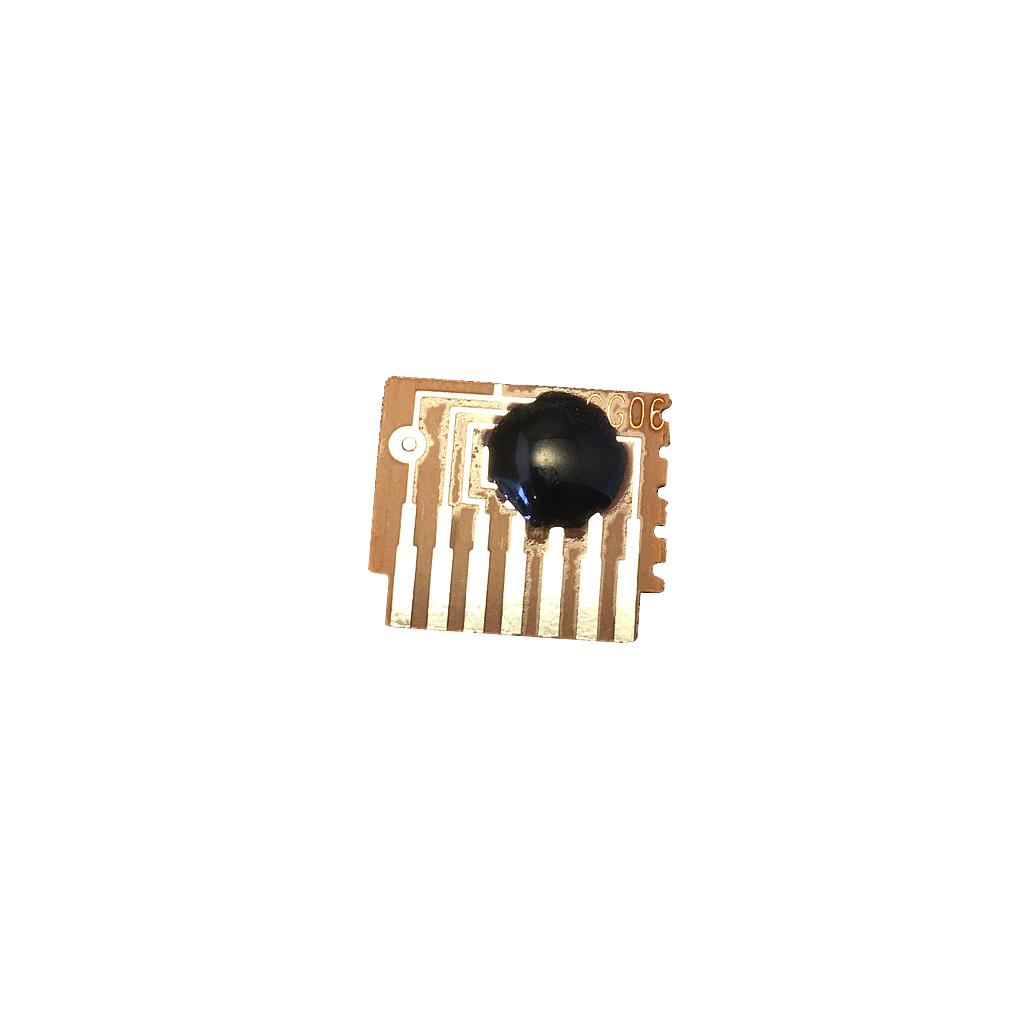

Description: This 18mm x 15mm Chip-on-Board PCB contains a standard alarm siren as used in personal alarms, drivers for piezo horn sirens, cars & toys. It has a wide power supply of between 2V to 5V. (However, one factory does use it with a 9V battery in a personal alarm with no apparent failures.) It has automatic power down & a standby current is less than 2 uA.

The chip will tolerate a wide range of component values. A suggested circuit is given below. R1, The oscillator resistor was 47K; R2 3K3 and R3 5K6. With a good choke coil or transformer, and a good piezo resonating chamber sound outputs of over 105dB at 1 meter are obtainable.

This is the first time these die form IC's have been generally available to the hobbyist market.

Specifications:

  • Siren sound generator PCB size: 18mm x 15mm
  • 2V to 5V operation
  • Standby current of < 2uA
  • Contains a standard siren driver

The pinouts are as follows:

Pin Position        Pin Function
--------------            ----------------
     1                       VDD Positive 2 to 6V
     2                       Oscillator Resistor
     3                       Oscillator Resistor
     4                       Not connected
     5                       Push button trigger to Ground
     6                       Ground
     7                       Buzzer Output
