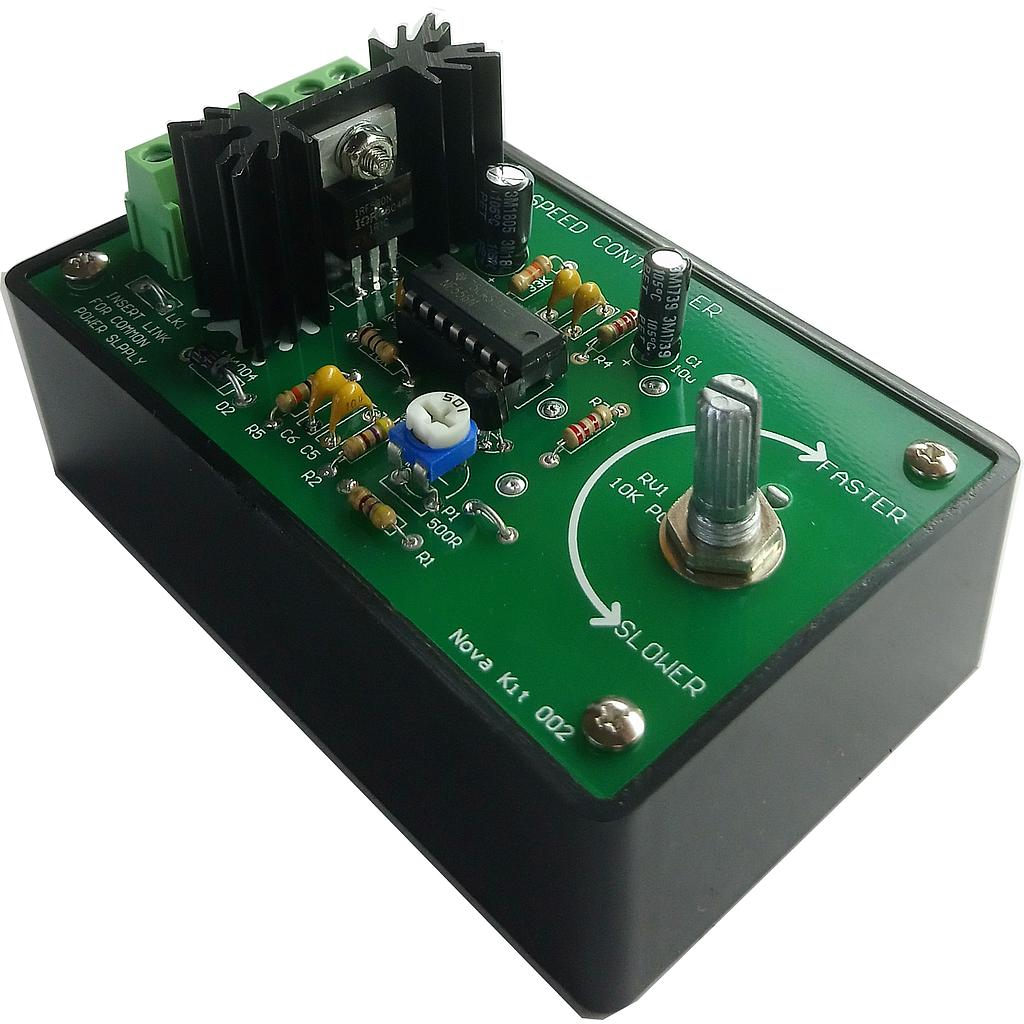

DC Motor Speed Controller (Assembled)

https://electronics123.odoo.com/web/image/product.template/3420/image_1920?unique=5f011a6
(0 review)

SKU : CPS67-TBA
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

CPS67-TBA K067 K67 NK002

44.95 44.95 USD 44.95

44.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This kit will control the speed of any common DC motor rated up to 100V (7A). Operates on 5V to 15V. Uses a NE556 to pulse-width modulate a high current switching power transistor, IRF530 MOSFET. In this way motor torque is maintained. Adjustable speed control.

Specifications:

  • PCB dimensions: 96mm x 55mm

NOTE: Please allow 24 hours for assembly!

Documentation and Downloads
