Available assembled. Click to buy it assembled

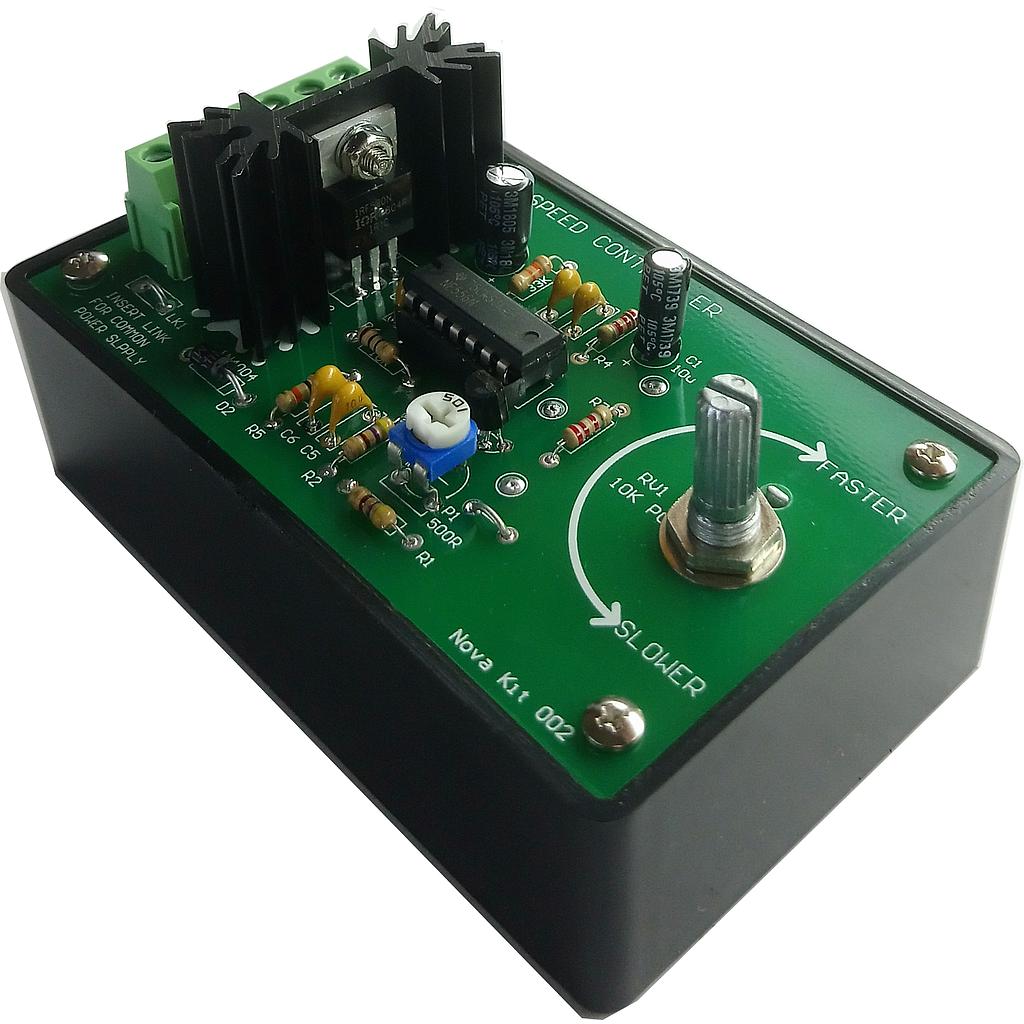

Description: This kit will control the speed of any common DC motor rated up to 100V (7A). Operates on 5V to 15V. Uses a NE556 to pulse-width modulate a high current switching power transistor, IRF530 MOSFET. In this way motor torque is maintained. Adjustable speed control.
PCB dimensions: 96mm x 55mm
Documentation and Downloads
