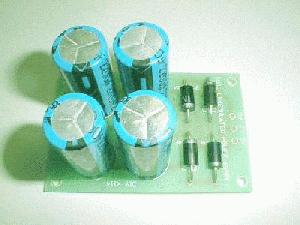

Dual Unregulated Power Supply (Kit)
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: Four on-board 100V, 3A diodes plus 2200uF/50V electrolytics to provide an unregulated power supply from a center-tapped transformer. Many power amplifiers require a dual DC power supply for their operation. Usually this consists of some diodes and electrolytic capacitors to convert an AC voltage to a +/- DC voltage. This simple kit does just that, with all the components mounted on a small PCB to avoid the usual spaghetti-wired mass (mess?). The kit is constructed on single-sided printed circuit board. (K114)
