Dual Unregulated Power Supply (Kit)
SKU : CPS114
Quantity on Hand :
6
Skill Level : Kit - Basic Soldering Required
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
K114
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Available assembled. Click to buy it assembled
CLOSEOUT ITEM. NEW LOW PRICE! LIMITED QUANTITY AVAILABLE.
Share

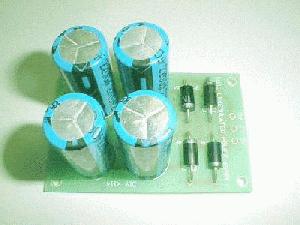

Description: Four on-board 100V, 3A diodes plus 2200uF/50V electrolytics to provide an unregulated power supply from a center-tapped transformer. Many power amplifiers require a dual DC power supply for their operation. Usually this consists of some diodes and electrolytic capacitors to convert an AC voltage to a +/- DC voltage. This simple kit does just that, with all the components mounted on a small PCB to avoid the usual spaghetti-wired mass (mess?). The kit is constructed on single-sided printed circuit board. (K114)
