Serial Isolated I/O Module (Assembled and Tested)
SKU : CPA108
Quantity on Hand :
151
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
K108A / K001NOVA
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

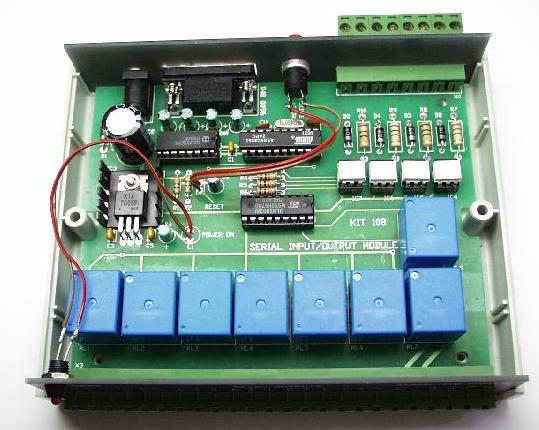

Description: 8-Relay Module (mains rated - 110V and 250VAC.) An extension of our Kit CPS74, PC controlled 8-Relay Board with 250V switching relays and added features. It is in a plastic case, latched relay operation, 250V relays switched in safety by using Dinkle connectors, and with 4 external inputs. Uses serial port so it can be located over 100 yards from the PC. Comes with case and end panel pieces as shown in the photos. Requires a center positive 9-to-12V DC power supply, at least 500mA, 2.5mm jack.
| Additional Details: |
| Q: Can this module be used in standalone mode? A: No. It needs to be connected to a PC. However the state of the relays will be "remembered" and will not change when disconnected from the PC. (K108A) |
