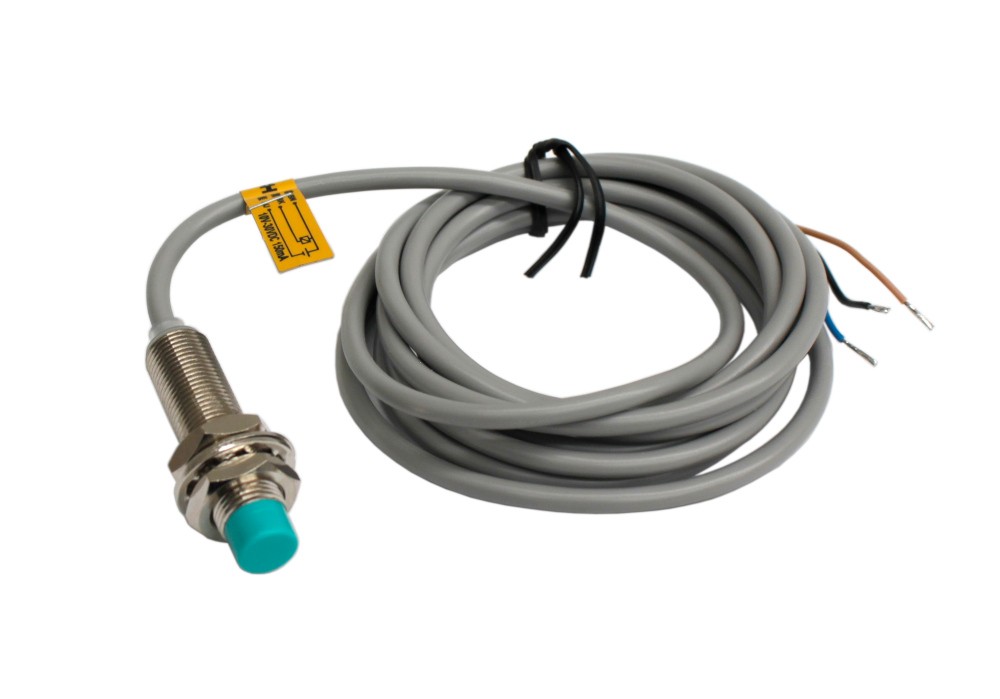

Description: Tubular Inductive Proximity Switch Unshielded PNP Output TS-1204NA
Specifications:
Specifications:
- Proximity switch inductive tubular shape
Dimensions 12mm Dia x 40mm Long
- Secure Sensing Range 0-3.2mm
- Suitable for Limit/Speed Switches
- Supply Voltage 10-30VDC
- Degree of Protection IP67
- Maximum Output Current 150mA
- Power Absorbed < 10mA
- Voltage Drop <=1.5V
- Operating Frequency 600Hz
- Temperature/Humidity -20 to +70degC/ 35 to 95%RH
