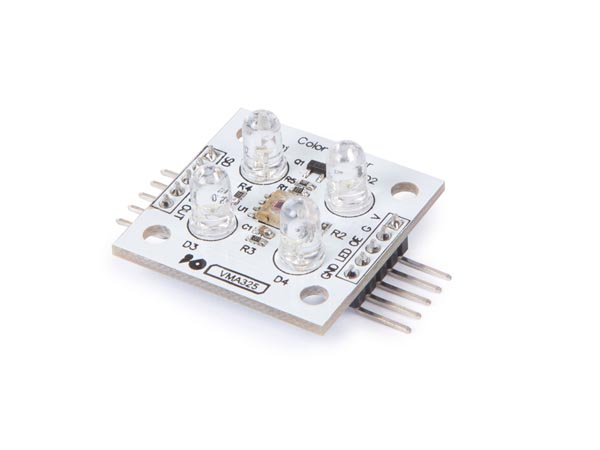

Color Sensor TCS3200 Module

This color sensor module is based on the TCS3200. It senses colored light with an 8 x 8 array of photodiodes; a current-to-frequency converter turns the readings into a square wave whose frequency is directly proportional to the light intensity. An Arduino or other microcontroller reads the square wave to determine the color.

• Sensor: TCS3200
• High-resolution conversion of light intensity to frequency
• Programmable color and full-scale output frequency
• Communicates directly with a microcontroller
• Single supply operation: 2.7 V to 5.5 V
• Power-down feature
• Non-linearity error typically 0.2% at 50 kHz
• Stable 200 ppm/°C temperature coefficient
• Dimensions: 28.4 x 28.4 mm

Pin functions:

• S0, S1: output frequency scaling selection inputs
• S2, S3: photodiode type (color) selection inputs
• OUT: output frequency
• OE: output enable, active low (connect to GND)
• LED: LED enable input, low = on
