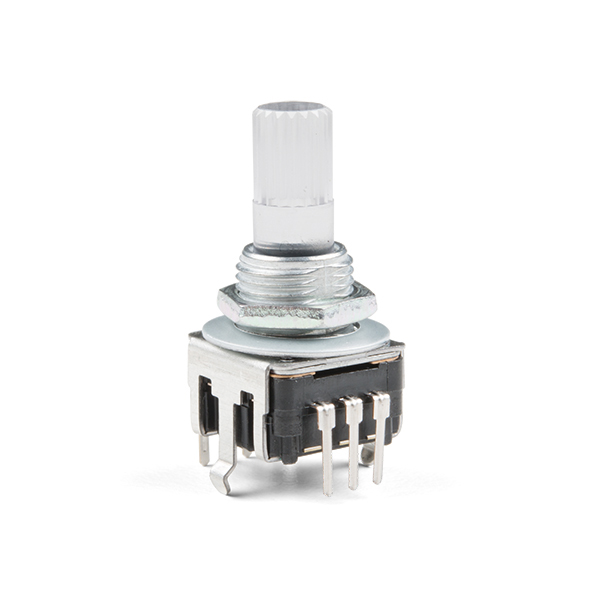

Rotary Encoder - Illuminated (RGB)

    4.49 4.49 4.49 USD

    4.49

    This combination does not exist.

    Add to Cart

    SKU : COM-15141
    Quantity on Hand : 10
    Skill Level : Component or Part
    ROHS Compliant

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!


    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions

    Share

    Description: Rotary encoders can be used similarly to potentiometers. The difference being that an encoder has full rotation without limits (It just goes round and round). They output gray code so that you can tell how much and in which direction the encoder has been turned. They're great for navigating menu screens and things like that.

    This encoder is especially cool because it has a common anode RGB LED built in, as well as a push-button. This version has an updated material that is heat resistant and slightly changed dimensions, but should still work well with our rotary encoder breakout board.

    Features:

    • Switch Travel: 0.5mm
    • Shaft Diameter: 6.0mm
    • Shaft Length: 18mm
    • Vertical Through-Hole Mount
    • 24 Pulses per Rotation
    • Red/Green/Blue LED
    • Pushbutton
