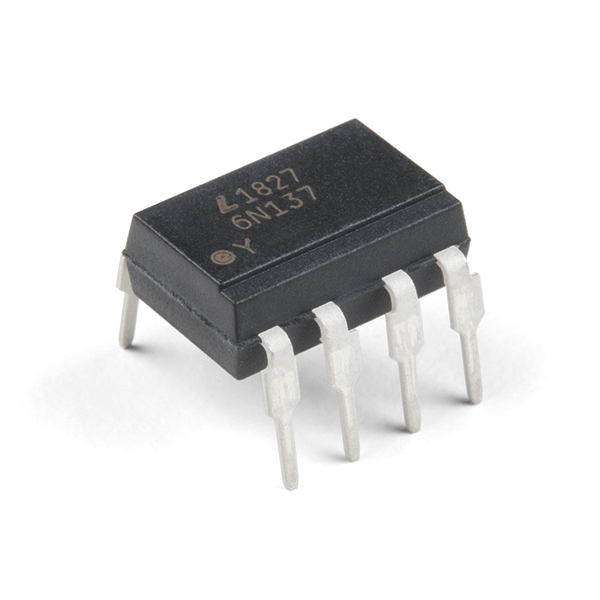

High Speed Optoisolator - 6N137
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: This diode-transistor photocouplers consist of an LED, optically coupled to a high speed photodetector to transmit electrical signals between circuits while still isolating your system from higher voltages. The 6N137 optoisolator is presented in an 8-pin DIP package.
The output features is an open collector and coupler parameters are guaranteed over the temperature range from -40℃~5℃. The internal shield provides a guaranteed Common Mode Transient Immunity (typical) 10KV/μs.
High Speed: 10MBd
Common Mode Rejection: 10KV/μs
