Bourns Absolute Encoder (EAW0J-B24-AE0128L)

https://electronics123.odoo.com/web/image/product.template/11419/image_1920?unique=d222253
(0 review)

SKU : COM-15036
Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

COM-15036

9.95 9.950000000000001 USD 9.95

9.95

Not Available For Sale

    This combination does not exist.

    ADD TO CART

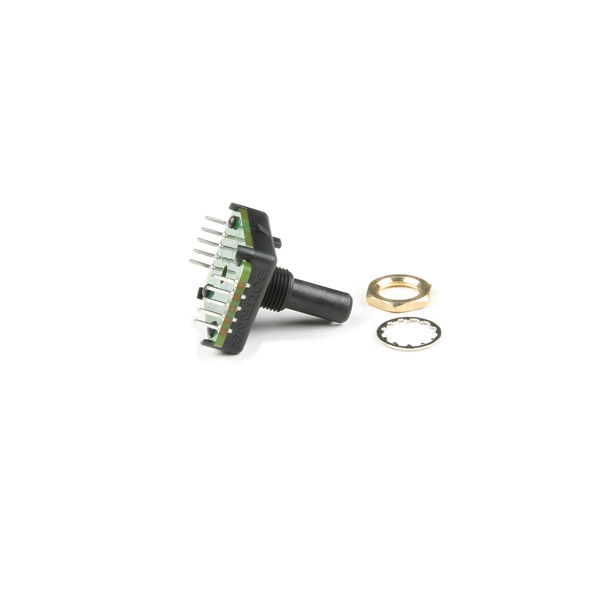

    Description: The Bourns Absolute Encoder is a digital control knob that provides 128 unique results evenly spaced around a full circle. It is designed as a control panel knob but can be adapted for other uses. This can be a good alternative to using a potentiometer and analog pin, as this allows for full-turn and multi-turn operation.

    It differs from the more common incremental rotary encoder which has only two or four values in a rotation and is designed to measure full rotations and direction. This measures angles and absolute position is maintained between power cycles.

    Features:

    • Absolute Contacting Encoder (ACE)
    • Mounting nut and lock washer (9mm mounting hole)
    • 128 rotary positions
    • 360-degree continuous rotation
    • Rotational life - 50,000 revolutions (min)
    • Max RPM - up to 120
    • Absolute digital output will retain its last position between power cycles or in the event of a power failure
    • Threaded M9x0.75 in. bushing
    • 3/4 in. rotating encoder shaft
    • Rear mount terminals
