Dual 7-Segment Display - LED (RGB)
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

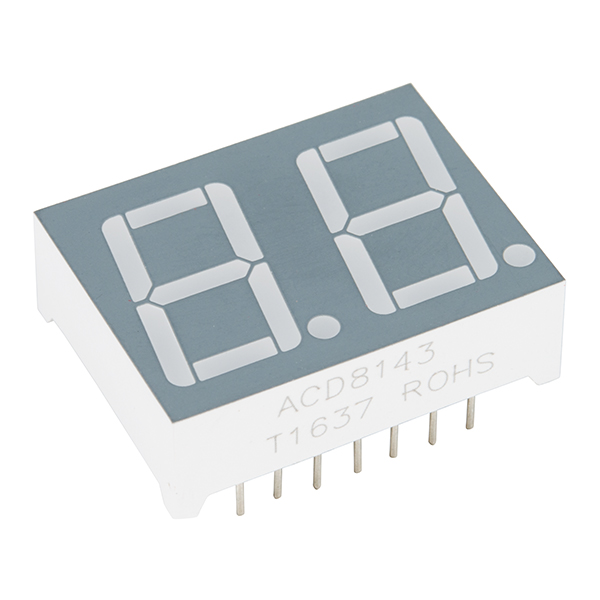

Description: This is not your basic 7-segment display. The Dual 7-Segment Display features two digits with an RGB LED in every single segment! You will now have a small 7-segment LED in your project with a full-color display!
The Dual 7-Segment Display is breadboard friendly and possesses a digit height of 0.56in (14.22mm). The red LEDs have a forward voltage of 2VDC, 2.85VDC for green, and 2.95VDC for blue, with a continuous forward current per segment of 10mA for the red LEDs and 5mA for the green and blue.
Documentation and Downloads
