Schmitt Trigger - CD40106B

https://electronics123.odoo.com/web/image/product.template/10034/image_1920?unique=58859b1
(0 review)

SKU : COM-13952
Quantity on Hand : 7
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

COM-13952

3.95 3.95 USD 3.95

3.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

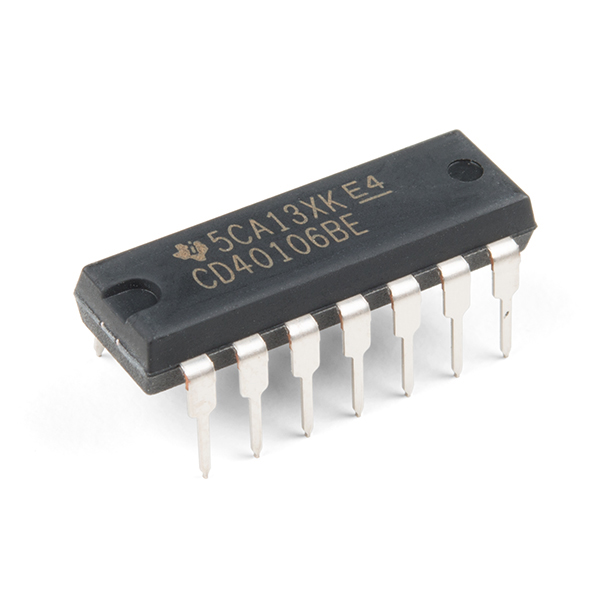

Description: The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).

Features:
  • Schmitt trigger action with no external components
  • Hysteresis voltage typ. at 0.9V at VDD = 5V, 2.3V at VDD = 10V, and 3.5V at VDD = 15V
  • Noise immunity greater than 50%
  • No limit on input rise and fall times
  • Standardised, symmetrical output characteristics
  • 100% tested for quiescent current at 20sV
  • Maximum input current of 1µA at 18 V over full package temperature range; 100nA at 18V and 25°C
  • Low VDD to VSS current during slow input ramp
