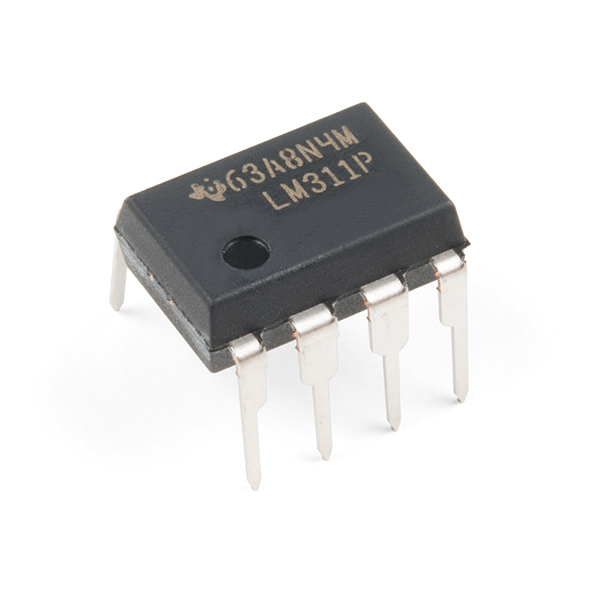

Differential Comparator - LM311

(0 review)

SKU : COM-13950
Quantity on Hand : 7
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

1.00 1.0 USD 1.00

1.00

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Description: The LM311 device is a single high-speed voltage comparator. This device is designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits.

It is capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.

Features:
  • Fast Response Time: 165 ns
  • Strobe Capability
  • Maximum Input Bias Current: 300 nA
  • Maximum Input Offset Current: 70 nA
  • Can Operate From Single 5-V Supply
