Solid State Relay - 40A (3-32V DC Input)

https://electronics123.odoo.com/web/image/product.template/10075/image_1920?unique=cc745ef
(0 review)

SKU : COM-13015
Quantity on Hand : 0
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

COM-13015

10.95 10.950000000000001 USD 10.95

10.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

A solid state relay (SSR) allows you to control high-curent AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there’s no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

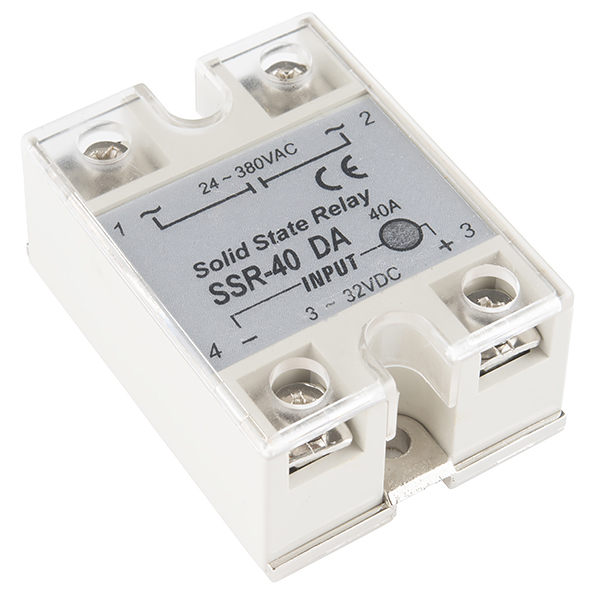

This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Features:

  • Trigger Current: 7.5mA/12V
  • Control Voltage: 24-380V AC
  • Input Voltage: 3-32V DC
  • Zero Cross

Documentation and Downloads
