Big Dome Pushbutton - Blue
SKU : COM-11274
Quantity on Hand :
1
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

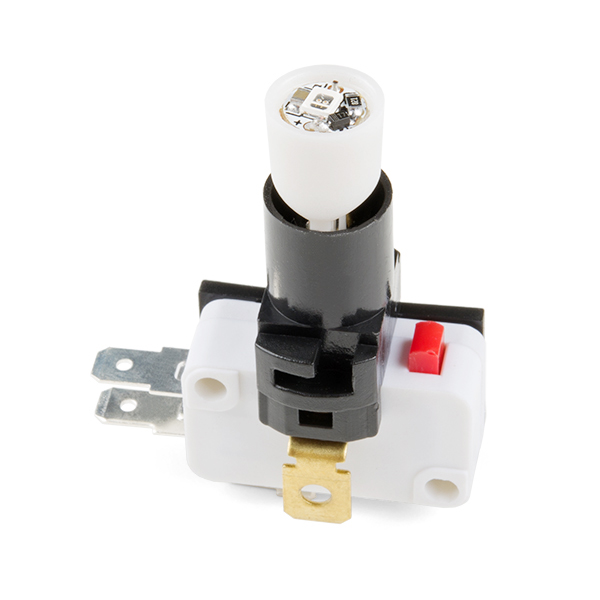

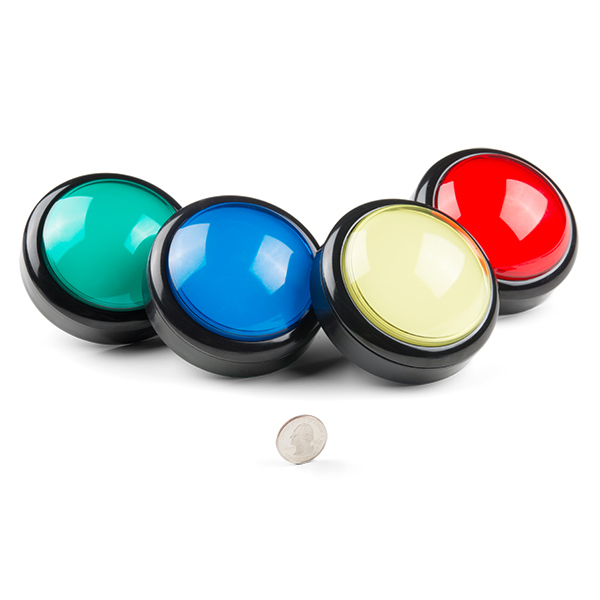

Description: It’s the end of the world, and you need a button to press. This is it. A 100 mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. The button can also be adjusted to a low profile button by removing the middle ring.
Features:
LED indicator light runs at 12VDC
Bulb holder is easy to install or remove
3 Terminals Button Actuator microswitch included
Microswitch reliability tested to 10,000,000 cycles
Microswitch can be replaced
Polycarbonate lens cap for optical clarity* 100 mm Diameter x 72 mm Height
Net weight: 100grams
Mounting hole diameter: 24 mm
