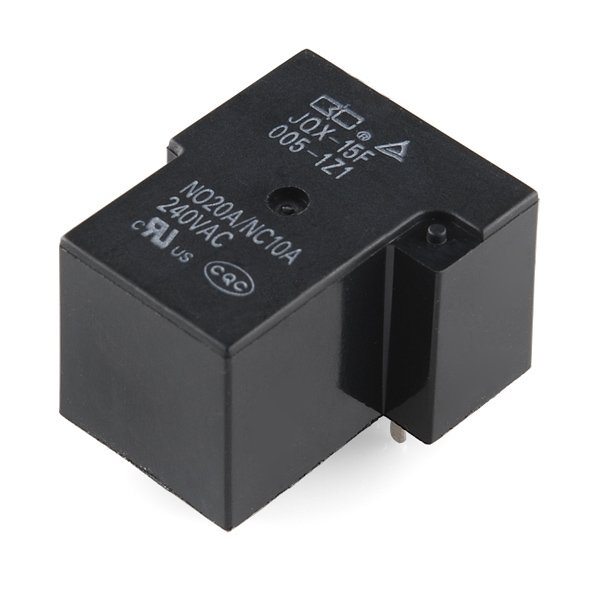

Relay SPDT Sealed - 20A (5VDC Coil)
SKU : COM-10924
Quantity on Hand :
9
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: These are massive single pole - double throw (SPDT) sealed relays. This means that when current is applied to the coil it throws a simple changeover switch, terminating the connection from the NC contact to ground and closing the NO contact. Use them to switch high voltage/high current devices.
Features:
- SPDT Relay
- Contacts Rated up to 220VAC @ 20A
- Coil Voltage: 5V
- Fully Sealed
Documentation and Downloads
- Datasheet (JQX-15F/005)
- Relay Tutorial
