Concave Button - Red
SKU : COM-09336
Quantity on Hand :
10
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

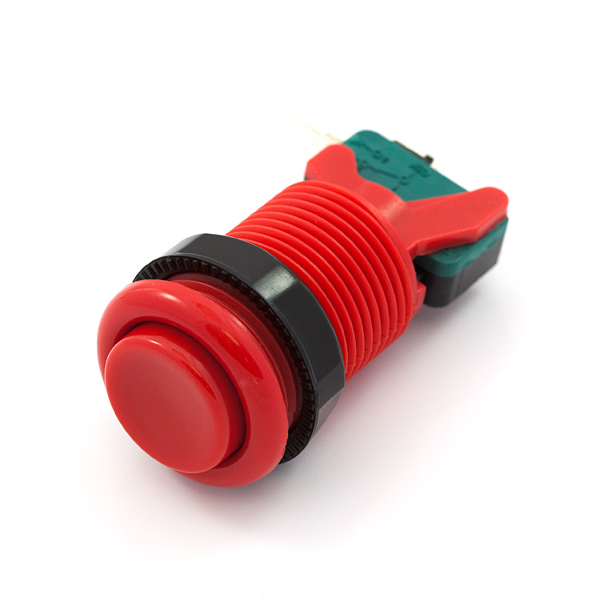

Description: This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, ‘clicky’ feel.
Features:
- Concave plunger design
- Durable nylon material
- Microswitch: max 3A @ 120 VAC
- Microswitch reliability tested to 10,000,000 cycles
- Includes 3 terminal microswitch
- Net weight: 25g

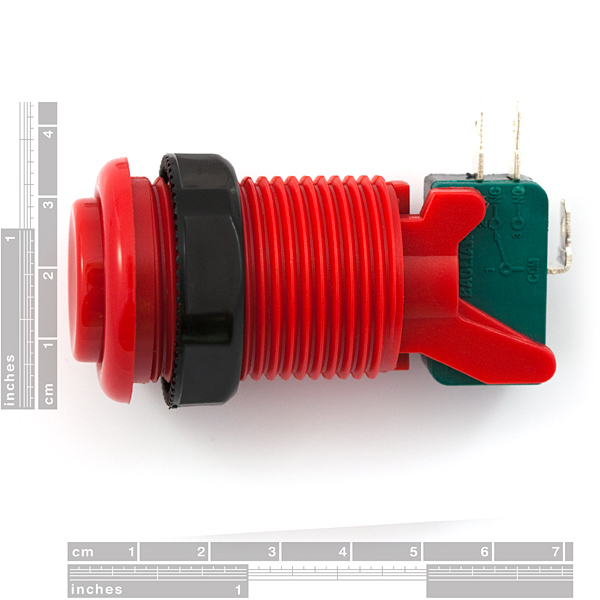

Dimensions:
- Bezel diameter: 32mm
- Overall height: 65mm
- Mounting hole: 1 1/8th inch paddle bit (1.125" / 28mm)
