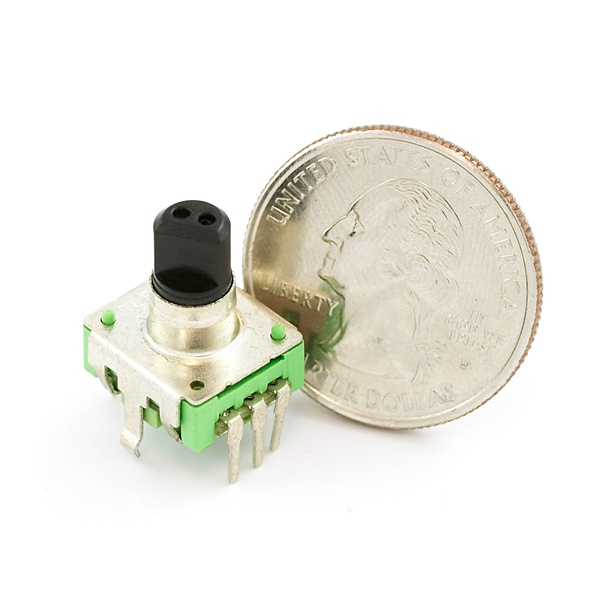

Rotary Encoder
SKU : COM-09117
Quantity on Hand :
2
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This is a 12-step rotary encoder with a nice 'clicking' feel. It's breadboard friendly, and has a pretty handy select switch (by pushing in on the knob). The encoder is different from a potentiometer in that an encoder has full rotation without limits. The unit outputs gray code so that you can tell how much and in which direction the encoder has been turned.
This unit does not come with a knob.
Documentation and Downloads
- Bildr example showing how to use an encoder in Arduino
- Rotary Encoder Tutorial and Arduino Project
- Example Arduino Project
- Example Cooking Timer
- Datasheet
