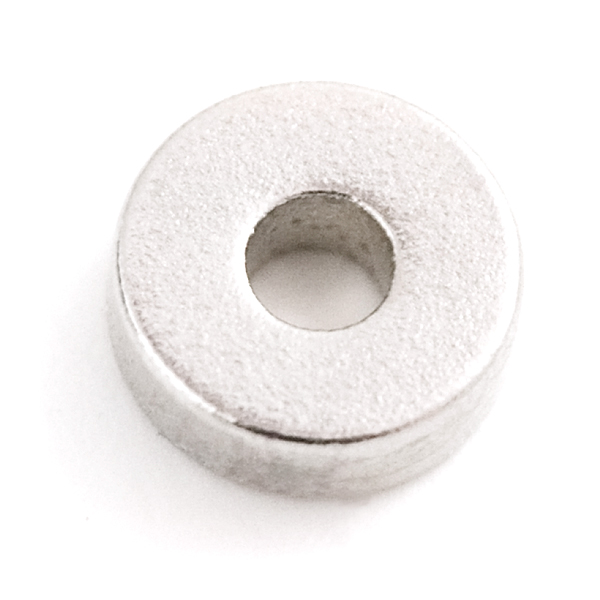

Magnet Ring - 3/16"

https://electronics123.odoo.com/web/image/product.template/11517/image_1920?unique=0e0e332
(0 review)

SKU : COM-08914
Quantity on Hand : 5
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

COM-08914

1.50 1.5 USD 1.50

1.50

Not Available For Sale

This combination does not exist.

Add to cart

Share

Description: These are small rare earth magnets - 3/16" rings. Composed of Neodymium/Iron/Boron (NdFeB), these magnets are curiously strong and make for a great way to attach tools to a metal workbench, hold small children to a fridge, and as a trigger for reed switches. This one small ring can easily hold a piece of paper to your fridge.

We found these small rings to be very useful for connecting PCBs together. These rings are conductive and can act as a magnetic connector between widgets. You need a way to secure the ring to the PCB (screws and rivets have been shown to work).

Sold in single units.

Features:

  • Dimensions: 3/16" od x 1/16" id x 1/16" thick
  • Tolerances: ±0.002" x ±0.002" x ±0.002"
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.00665 oz. (0.189 g)
  • Pull Force: 1.48 lbs!
  • Surface Field: 2275 Gauss
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe
