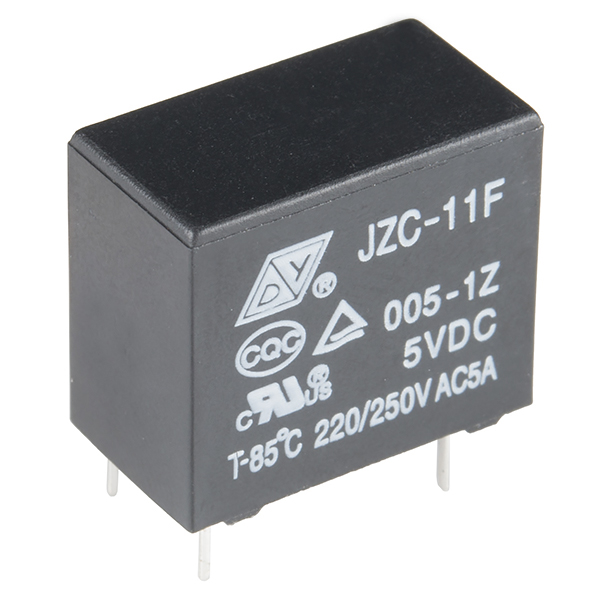

Relay SPDT Sealed (5 to 12VDC Coil)
SKU : COM-00100
Quantity on Hand :
28
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: These are high quality Single Pole - Double Throw (SPDT) sealed relays. Use them to switch high voltage, and/or high current devices.
This relay’s coil is rated up to 12V, with a minimum switching voltage of 5V. The contacts are rated up to 5A (@250VAC, 30VDC).
Note: In the Datasheet below there is a pin layout listed as “Bottom View.” Be aware, this pin layout is actually the top-down view NOT bottom-up.
Features:
- 5V DC SPDT Relay
- Rated up to 5A
- Fully Sealed
