Cable - 5-pin 1.25mm Connector - 4-pin Breadboard
SKU : CAB-15132
Quantity on Hand :
5
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

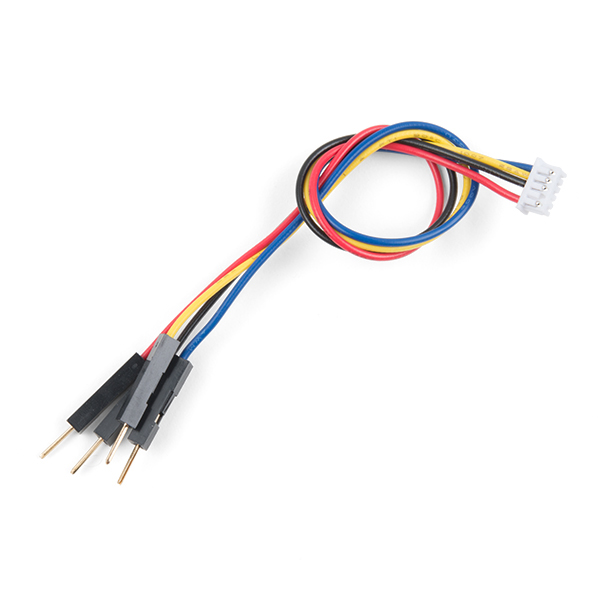

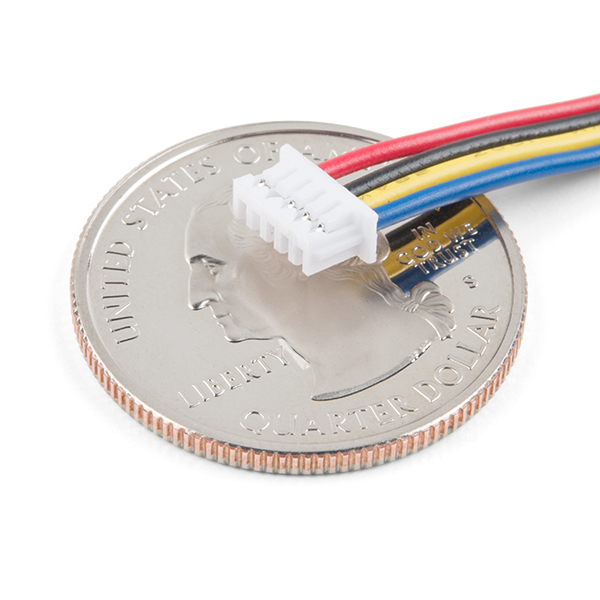

Description: This is a four wire cable with a 5 pin, 1.25mm pitch connector on one end. These cables are helpful if you're trying to simply get breadboard access to the more esoteric TE connectors.
Features:
- Cable Length: 150mm
- Wire Gauge: 28AWG
- Connector part number: TE Connectivity # 440146-5
- Cable plugs into part number: TE Connectivity #1734598-5
