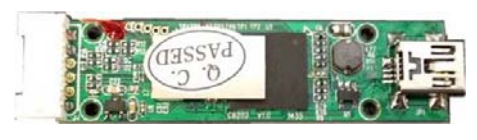

C8202A UVC Module for MuC30x Camera Modules
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
C7042 USB Module
Description: The C8202A is specially designed for interface micro-camera module, muC30x. It has built in a delicate DSP for the interface for muC30x as well as the USB2.0 transceiver. It is UVC compatible and no PC driver is required.
UVC compatible, no driver is needed for win7, win10
Good for some kernel of Linux OS
Output 400x400pixels at 30fps
YUV422 for video data output
LED to indicate operation status
Enter sleep mode when no data streaming
Simple operation for AWB
Mini USB connector
Powered by USB port
Q1: What is difference between C8202A and C3842?
A1: C8202A is driver-less for a PC application but with limited functions, only viewing. it works for most windows OS, or even on some Linux systems. C3842, need user to install a driver before viewing, user can also manipulate the camera for image control and etc.
Q2: What is the "White Balance Button" for?
A2: When you find that the color of the picture is not true to color due to lighting differences. Point the camera to a white paper. Then press the button for a second. Color balance will be set.
Documentation and Downloads
