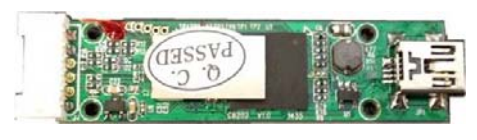

Description: The C8202A is specially designed for interface micro-camera module, muC30x. It has built in a delicate DSP for the interface for muC30x as well as the USB2.0 transceiver. It is UVC compatible and no PC driver is required.
Features:
- UVC compatible, no driver is needed for win7, win10
- Good for some kernel of Linux OS
- Output 400x400pixels at 30fps
- YUV422 for video data output
- LED to indicate operation status
- Enter sleep mode when no data streaming
- Simple operation for AWB
- Mini USB connector
- Powered by USB port
FAQ:
Q1: What is difference between C8202A and C3842?
A1: C8202A is driver-less for a PC application but with limited functions, only viewing. it works for most windows OS, or even on some Linux systems. C3842, need user to install a driver before viewing, user can also manipulate the camera for image control and etc.
Q2: What is the "White Balance Button" for?
A2: When you find that the color of the picture is not true to color due to lighting differences. Point the camera to a white paper. Then press the button for a second. Color balance will be set.
