C8201-420 TV Interface Module for MuC30x series Micro Camera Modules (NTSC)
SKU : C8201-420
Quantity on Hand :
2
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

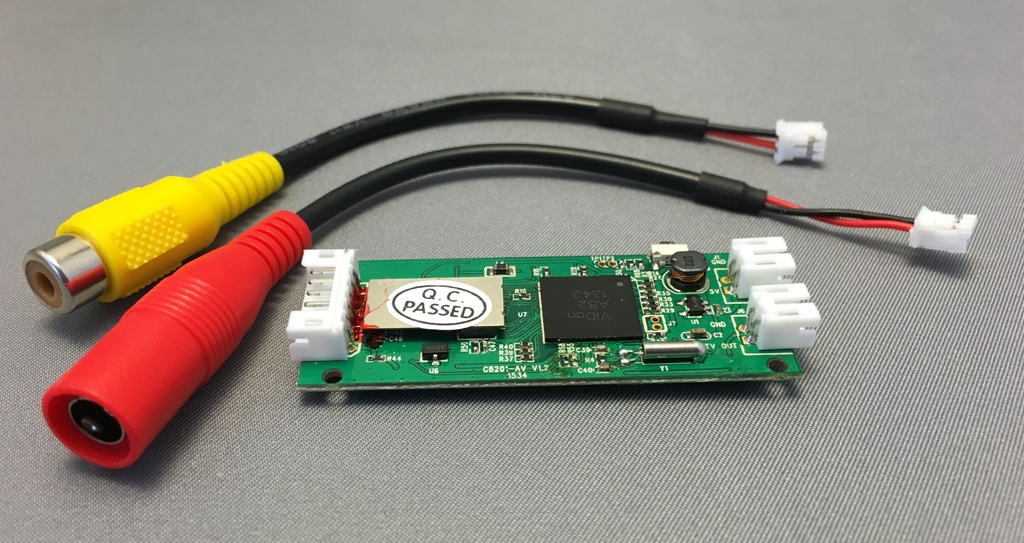

Description: The C8201-420 is specially designed as an interface for the MuC30x-series micro camera modules. It has a analog video signal interface to connect to a TV set
Features:
Small size 22x55mm
Interface to muC30x series
Auto White Balance
Real time Video output
Plug and play
Support NTSC or PAL Display (factory setting)
Image display in center of monitor
Latency <0.1sec
3.7 to 5VDC to operate
Documentation and Downloads
