C6820 Enhanced JPEG Module ONLY

(0 review)

SKU : C6820U
Quantity on Hand : 5
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


22.00 22.0 USD 22.00


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart



Please Note: This item is the module only. For the EV kit see C6820EV

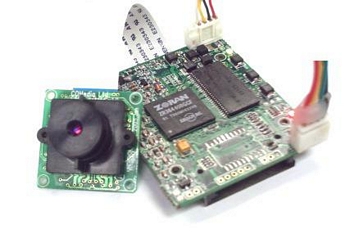

Description: The C6820 Enhanced JPEG Module is a small, lightweight and low power consumption device including most of the features of a Digital Still Camera (DSC) such as snapshot, video capture, date-time stamp, file management and others. By using external micro-controller, together with a well-developed, user-friendly interface, people can build a custom made camera for a specific application.


  • UART interface for camera control

  • User friendly commands

  • Different baud rate setting to meet most of MCU and PC software

  • Support Mega pixel sensor

  • SD connector (SD card not included)

  • Real time composite video data output

  • USB mass storage


  • Image Sensor CMOS sensor OV3620

  • Image Processor ZORAN COACH-6E

  • On Board Memory 128Mb

  • Storage Resident 16MB NAND Flash

  • Video Capture 640 x 480 (30 fps)

  • 320 x 240 (30 fps)

  • Unlimited Motion JPEG capturing time depends on available

  • Memory space

  • Photo Resolution 1280 x 960, 640 x 480 JPEG format

  • WhiteBalance Normal / Daylight / Tungsten / Fluores / Cloudy

  • UART Baud Rate 115200, 57600

  • TV out NTSC / PAL

  • USB Interface USB 1.1 Mass storage mode Supported OS: Win2000 / ME / XP

  • Power DC 5V

  • Main Board Dimension 45 x 55 mm

  • Sensor Board Dimension 27.28 x 27.28mm

NOTE: We strongly recommend that you purchase the EV kit rather than the camera. The EV kit already has an interface built into it and is easy to setup and troubleshoot. We can only provide tech support to customers who bought the EV kit.

(EV kit manual is only for information. This is the camera only. EV kit sold separately.)
