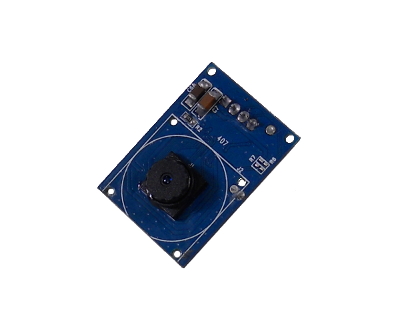

C407 Camera Module
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: The C407 is a camera module for various embedded image acquisition systems, such as: remote monitoring, vehicle monitoring, doorbell cams, camera phones, digital image recording, industry control, access control, etc. It is especially suited for low speed remote control image transmission system, such as phone lines, GPRS based on CDMA, & digital radio.
Small in size: 28mmX20mm (LxW)
0.3M. CMOS sensor, VGA resolution, down sample to QVGA
Low power consumption, 3.3V operation
UART interface support up to 115.2Kbps
Built-in JPEG CODE
Built-in lens, FOV 60°
Pixel Size PAL:628 x 582 / NTSC:510 x 492
Image Sensor 1/5" , CMOS sensor OV7740
Baud Rate 9.6Kbps~115.2Kbps
Operating Voltage 3.3V‚ ±10%
Working Current 90 mA
Construction: 3P+IR filter
Effective Focal Length: 2.7mm
FOV: 60° - 60°-120° option
Relative illumination: 60% 3.44
Operating Temp. -20‚°C ~ +60‚°C
Dimension 28 mm x 20 mm (LxW)
